Whole-Building Surge Protection: IEC 61643-11 Selection & Installation Guide for Contractors and EPC Engineers

Electrical surges destroy equipment quietly. A switching event from a variable-frequency drive two floors up can degrade a PLC input card over months before anyone notices. A nearby lightning strike — even one that misses the building entirely — can inject thousands of volts into every conductor entering the structure in under a microsecond. By the time equipment fails, the connection to surge damage is rarely made. This guide covers every engineering decision that separates a compliant, high-performance whole-building surge protection design from one that looks correct on paper but fails in service.

1. Why Surge Protection Is a Design Requirement, Not an Add-On

For years, surge protective devices were treated as optional line items — something added if the budget allowed, or dropped during value engineering. That position is no longer defensible.

IEC standards require it. IEC 60364-5-53:2019, Section 534, covers the selection and erection of SPDs in buildings. For any building with an external lightning protection system (LPS) or an overhead power supply, the standard framework points clearly to a Type 1 or Type 1+2 SPD at the service entrance. IEC 62305-4, covering surge protection of electrical and electronic systems within structures, builds an entire design methodology around this requirement.

The equipment being protected is more vulnerable than it used to be. A motor starter from thirty years ago could tolerate several hundred volts of transient overvoltage. A modern variable-frequency drive, building management system controller, or IP-based security panel typically cannot. Contemporary electronics are designed for compactness and efficiency — not surge tolerance. An SPD with a voltage protection level (Up) of ≤ 1.5 kV ensures the transient voltage reaching that equipment stays within its insulation withstand rating.

The financial case is straightforward. A Type 1+2 DIN-rail SPD at the main distribution board represents a fraction of one percent of the protected equipment value on a typical commercial project. Replacing a failed PLC, power supply, or communications module — plus the diagnostic time, downtime, and labour — costs orders of magnitude more. Specifying surge protection is one of the highest return-on-investment decisions on any IEC 61643-11 compliant electrical installation.

2. Where Surges Actually Come From in Commercial Buildings

The widespread belief that surges are primarily a lightning problem leads directly to chronic under-specification. Lightning-induced surges are real and potentially the most damaging — but they account for a minority of total surge events in a typical building.

The more frequent threat is internally generated. In any commercial or industrial building, these sources operate continuously:

Variable-frequency drives (VFDs) and motor starters. Every speed change or contactor opening under load creates a high-rate-of-change current event (di/dt) that propagates as a voltage transient through the distribution system. A facility with ten VFDs has ten active, continuous internal surge sources. Transients from VFD switching routinely reach 1–3 kV on 400 V systems.

HVAC systems. Compressor and fan motor contactors generate switching transients every start/stop cycle — potentially thousands of times per day in a large facility. HVAC switching is consistently identified in electrical engineering literature as one of the most common sources of internally generated surges.

Elevator and escalator drives. Regenerative drives in modern lifts feed energy back into the supply network during deceleration, creating voltage rise events that propagate to equipment sharing the same upstream distribution.

Power factor correction capacitor banks. Capacitor switching generates high-frequency transients that can momentarily reach several times the supply voltage. These events are brief but energetic, and they couple easily into signal and control wiring.

UPS systems and standby generators. Transfer switching between mains and backup supply creates transient events at the moment of changeover, even in well-designed automatic transfer systems.

None of these require a storm. They operate every day, in every building, regardless of weather conditions.

A surge protection strategy that installs one device at the service entrance and stops there misses the internally generated threats entirely — because those transients never pass through the service entrance SPD. They originate inside the building and propagate outward from their source.

This is precisely why both IEC 60364-5-53 and the IEC 62305-4 application framework call for a layered protection approach: one stage at the service entrance for incoming surges, and additional stages at sub-distribution boards to intercept locally generated transients before they reach sensitive equipment.

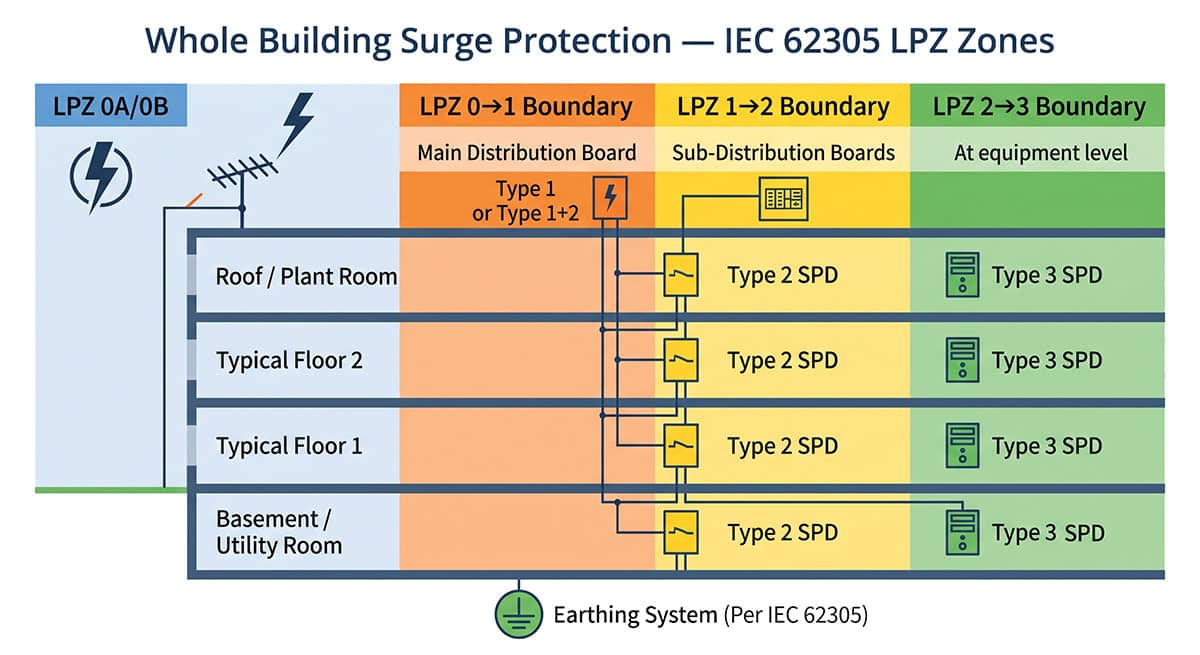

3. The IEC Lightning Protection Zone Framework

IEC 62305-3 and IEC 62305-4 introduce the Lightning Protection Zone (LPZ) concept as the systematic basis for determining where surge protection belongs in a building. Understanding it transforms SPD placement from guesswork into a defensible engineering decision.

The concept divides a building into concentric zones, numbered from the outside in. Each zone boundary represents a transition from a higher-threat electromagnetic environment to a progressively lower-threat one. SPDs are installed at zone boundaries to ensure surge energy is reduced to a compatible level before crossing into the next zone.

LPZ 0A is the unprotected external environment — direct lightning exposure, full electromagnetic field. Antenna masts, rooftop equipment, and external cable routes live here.

LPZ 0B is the external zone shielded from direct strikes by an air-termination system (lightning rods or mesh conductors), but still exposed to the full lightning electromagnetic field.

LPZ 1 is the first interior zone — typically the main electrical room. Surge current entering LPZ 1 has been reduced by building shielding and by the SPD at the LPZ 0→1 boundary. This is where the Type 1 SPD belongs: it handles the highest-energy incoming surges, including partial lightning current described by the 10/350 μs waveform and characterised by the impulse discharge current rating Iimp.

LPZ 2 is a further-protected inner zone — a sub-distribution room, server room, or control cabinet area. The SPD at the LPZ 1→2 boundary handles residual surge energy that the Type 1 device did not fully absorb. This is where the Type 2 SPD belongs: rated for the 8/20 μs induced surge waveform and characterised by In and Imax.

LPZ 3 and beyond represent zones surrounding the most sensitive equipment. Type 3 SPDs operate here, providing fine protection as close to the load as physically possible.

Key principle: No single SPD, regardless of its rating, provides adequate whole-building protection on its own. The stages must be present at every zone boundary, and each must be matched to the boundary it defends.

4. Type 1 vs Type 2 vs Type 1+2: Which Goes Where

The three SPD types defined in IEC 61643-11 are not interchangeable. Each is designed for a specific protection function, tested with a specific current waveform, and installed at a specific location. For a full technical comparison, see our Type 1 vs Type 2 vs Type 3 SPD comparison guide.

4.1 Type 1 SPD — Service Entrance / MDB

A Type 1 SPD is rated for the 10/350 μs lightning impulse current waveform, which simulates partial direct lightning current. Its key rating parameter is Iimp — impulse discharge current.

Type 1 devices are required when the building has an external LPS or when power arrives via overhead lines rather than underground cables. When lightning strikes a building or a nearby object, a portion of the lightning current couples into the electrical installation through LPS bonding conductors or through the supply line. This current follows the 10/350 μs waveform — a slow, high-energy pulse carrying far more charge than an induced switching transient.

A Type 2 SPD is not tested for the 10/350 μs waveform. If installed alone at the service entrance of a building with an external LPS, it will absorb energy far beyond its design rating during a direct lightning event — leading to immediate SPD failure, often without visible indication.

4.2 Type 2 SPD — Sub-Distribution Boards

A Type 2 SPD is rated for the 8/20 μs induced surge waveform, with performance characterised by In (the current it can discharge repeatedly without degradation) and Imax (the maximum single-event discharge current).

Type 2 devices belong at every sub-distribution board in the building — not only at the MDB. Internally generated surges from VFDs, HVAC equipment, and drives are injected directly onto sub-distribution circuits. They never pass through the MDB SPD. Only a Type 2 device installed at the board closest to the source intercepts them effectively.

4.3 Type 1+2 Combined SPD — MDB Where Separation Is Not Achievable

A Type 1+2 combined device is certified to both the 10/350 μs and 8/20 μs test protocols — delivering Type 1 protection (Iimp) and Type 2 protection (In/Imax) in a single DIN-rail unit.

When separate Type 1 and Type 2 devices are installed in series, IEC 61643-12 requires at least 10 metres of cable between them for correct energy coordination. In most modern commercial main panels, the MDB and the first distribution section are within the same enclosure or a few metres apart. Ten-metre separation is physically impossible.

A Type 1+2 combined SPD resolves this by providing factory-coordinated dual protection in a single device. For compact main panels and retrofit projects where the 10-metre separation requirement cannot be met, it is the technically correct and standards-compliant solution.

For a detailed guide on when to use combined vs separate devices, see our Type 1+2 SPD selection guide.

5. Critical Installation Rules That Determine Real-World Performance

Specifying the correct SPD type is necessary but not sufficient. The following installation details determine whether the rated protection level is actually delivered at the equipment terminals. For a full step-by-step guide, see how to install a surge protector.

5.1 Lead Wire Length: The Most Common Installation Error

The connecting conductors between the SPD terminals and the live conductors, neutral, and PE busbar must be kept as short as possible. The combined length of the line-side conductor and the PE-side conductor should not exceed 0.5 metres.

Every centimetre of conductor adds inductance, and inductance limits how fast the SPD can respond to a rising voltage transient. The voltage that actually appears at the equipment terminals is not just the SPD's Up — it is Up plus the inductive voltage drop across the connecting leads during the surge rise time. With long leads, a device specified at Up = 1.5 kV can allow 3 kV or more to reach the load.

Where straight conductor runs would exceed 0.5 metres, use the V-connection method: route both the line conductor and the PE conductor to the SPD terminals in a V-shape that minimises total lead length, even if this means bending the conductors back toward the SPD.

5.2 The 10-Metre Coordination Distance Rule

When separate Type 1 and Type 2 devices are installed in series, IEC 61643-12 requires a minimum of 10 metres of cable between them, or the installation of a coordination inductance (typically 1.5 μH). Without this separation, both devices respond simultaneously to the same surge event, compromising the voltage-limiting behaviour of each stage.

For the relationship between SPD coordination and circuit breaker selection, see our circuit breaker vs SPD coordination guide.

5.3 Backup Overcurrent Protection

SPDs must be protected against short-circuit and overload by an upstream fuse or circuit breaker, sized per the SPD manufacturer's instructions and installed cable cross-section. An SPD that fails in short-circuit mode without upstream overcurrent protection can create a fire hazard.

Standard miniature circuit breakers (MCBs) may open under the impulse current of a Type 1 SPD installation. Always verify the backup device is rated for the application, or use the manufacturer's recommended fuse type.

5.4 Earthing and Bonding

Surge protection can only perform to specification if the earthing system it connects to provides a low-impedance path for surge current discharge. An SPD connected to a high-impedance earth effectively cannot clamp — voltage rises until the earth path impedance limits the current, not the SPD clamping mechanism.

• The earth conductor from the SPD PE terminal to the main earthing busbar must be as short and direct as possible
• The main earthing busbar must be bonded to the building's equipotential bonding system
• All metallic services entering the building (water, gas, communications cables) must be bonded at the point of entry

6. Earthing System Matters: TN-S, TN-C, and TT Configurations

The earthing system arrangement of the installation — defined by IEC 60364-1 — directly affects how an SPD must be configured and wired. Specifying the correct SPD for the wrong earthing system is a compliance and safety error.

TN-S system (separate neutral and protective earth conductors throughout): The SPD must provide protection in L-PE, N-PE, and L-N modes. This is the most common arrangement in modern commercial buildings in IEC markets.

TN-C system (combined PEN conductor): The SPD connects between each line conductor and the PEN conductor. A separate N-PE protection mode is not applicable. Note: TN-C is generally not permitted in new installations under IEC 60364, but remains common in retrofit projects on older infrastructure.

TN-C-S system (TN-C upstream transitioning to TN-S at the MDB): The SPD is installed on the TN-S side, downstream of the point where N and PE are separated. Configuration follows the TN-S rules above.

TT system (separate, independent supply and installation earth electrodes): Requires special attention. Because the neutral conductor can float to a significant voltage above local earth potential, a simple three-pole SPD connected L-PE does not protect the N-PE gap. In TT systems, a 3+1 configuration is used: varistors between each line conductor and neutral, plus a spark gap or varistor between neutral and PE.

Note: TrilPeak's TPK-7 and TPK-12.5 Type 1+2 series are specified for TN-S and TN-C systems. For TT system installations, always verify the SPD model's rated protection modes before specification and confirm the neutral-PE protection path is covered.

7. SPD Specification Checklist for Contractors and EPC Engineers

Use this checklist before finalising the surge protection specification for any commercial or industrial building project under IEC/EN standards.

7.1 Step 1 — Establish the Threat Level

• Does the building have an external lightning protection system (LPS)? → Type 1 or Type 1+2 required at MDB
• Is the power supply via overhead lines? → Type 1 or Type 1+2 required at MDB
• Underground cables only, no external LPS? → Type 2 at MDB minimum; risk assessment may still recommend Type 1+2

7.2 Step 2 — Map the LPZ Boundaries

• LPZ 0→1 boundary: main service entrance / MDB → Type 1+2 SPD placement point
• LPZ 1→2 boundaries: each sub-distribution board feeding a distinct area, floor, or equipment room → Type 2 SPD at each board
• LPZ 2→3 requirements: critical equipment rooms, medical areas, data processing spaces → Type 3 SPD at equipment level

7.3 Step 3 — Check the Earthing System

• TN-S or TN-C-S: standard multi-mode SPD
• TN-C: SPD configured for PEN system
• TT: verify 3+1 neutral-PE protection coverage

7.4 Step 4 — Verify Uc Selection

• 230/400 V system: specify Uc ≥ 275 V (standard IEC market)
• 230/400 V system with elevated TOV exposure: specify Uc ≥ 320 V or higher
• Always confirm Uc ≥ 1.1 × nominal supply voltage

7.5 Step 5 — Confirm Installation Constraints

• Is 10-metre separation between Type 1 and Type 2 achievable? → If not, use Type 1+2 combined at MDB
• Can lead wire lengths be kept to ≤ 0.5 m total? → If not, plan V-connection routing before installation
• Is upstream overcurrent protection correctly rated for impulse current?

7.6 Step 6 — Document and Label

• Record SPD type, model, Iimp/In/Imax, Up, and installation date at each location
• Apply status indicator labels — visual indicator (green = functional, red = replace)
• Schedule inspection intervals: visual check annually or after any significant lightning event; comprehensive inspection every 2–4 years
• Know when to replace your SPD — a failed device with no visible indication is a common and dangerous oversight
