Industrial Surge Protector: Complete Selection Guide
Industrial surge protector installation in factory electrical room — row of Motor Control Centers with Type 2 SPD mounted at MCC-2 incomer panel, protecting 400V three-phase distribution to motors and VFDs

Industrial Surge Protector: Critical 3-Stage Selection Guide

A single surge event destroys a Programmable Logic Controller (PLC), Variable Frequency Drive (VFD), or CNC controller in microseconds — and can shut down a production line for 8 to 72 hours. This guide covers how to select and install an industrial Surge Protective Device (SPD) correctly, from service-entrance protection down to PLC cabinet level, per IEC 61643-11.

Quick Answer

For most industrial facilities: a coordinated 3-stage SPD strategy is required — Type 1 (or Type 1+2) at the service entrance (Iimp ≥ 12.5 kA, 10/350 µs), Type 2 at Motor Control Center (MCC) / distribution panels (Imax ≥ 40 kA, 8/20 µs), and Type 3 at every panel containing PLCs, VFDs, or Human-Machine Interfaces (HMIs) (Up ≤ 0.8–1.0 kV). Hardware cost runs $150–$500 per panel; a single unprotected failure event can cost $15,000–$300,000+ in hardware and downtime, so payback is typically under one month.

Industrial surge protector installation in factory electrical room — row of Motor Control Centers with Type 2 SPD mounted at MCC-2 incomer panel per IEC 61643-11, protecting 400V three-phase distribution to motors and VFDs

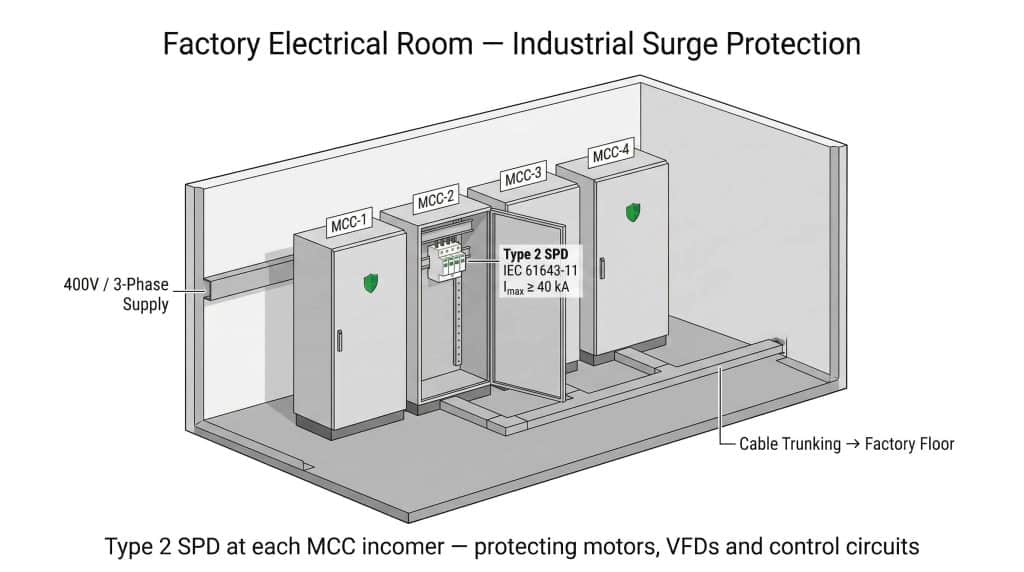

Figure 1. Factory electrical room with four MCC cabinets (MCC-1 to MCC-4) — Type 2 industrial surge protector installed at each MCC incomer on 400V / 3-phase supply, protecting downstream motors, VFDs and control circuits

Replacing a VFD costs $5,000–$30,000. The real cost is the 8–48 hour shutdown — emergency sourcing, rewiring, recommissioning, and lost production. In automotive manufacturing, that exposure reaches $22,000 per minute.

In most documented industrial surge failures, hardware replacement accounts for less than 20% of total incident cost. The rest is downtime. And in the majority of those cases, the surge didn't come from a lightning strike — it came from a motor contactor in the adjacent MCC bucket switching a 200 kW load, generating a 2,000V back-EMF spike on the 400V bus that destroyed the PLC I/O rack three cabinets away.

Effective industrial surge protection cannot be solved with a single panel-mounted device. It requires a coordinated 3-layer cascade — Type 1 or 1+2 at the service entrance, Type 2 at MCCs and distribution boards, and Type 3 at every control panel containing PLCs, VFDs, or precision electronics.

1. Why Industrial Facilities Need Dedicated Surge Protection

Industrial facilities face surge threats from two directions at once, and consumer-grade protection cannot handle either. Voltage transients arrive both from outside the plant (lightning) and from inside it (switching operations), often simultaneously.

External surges (Lightning Electromagnetic Pulse, LEMP): Overhead power lines, outdoor conveyor systems, and rooftop HVAC units act as antennas, coupling lightning energy into plant distribution even without a direct strike. Typical induced surge voltages reach 2,000–6,000V. The Siemens Dresser-Rand case in upstate New York illustrates the consequence: one lightning event wiped the programming and control electronics of a critical roll-threader machine, forcing a complete controls rebuild.

Internal switching transients (Switching Electromagnetic Pulse, SEMP): Approximately 80% of industrial transients originate inside the plant. A 200 kW induction motor drawing 400A startup current through a contactor creates a back-EMF spike exceeding 2,000V on the 400V bus. A 15 kW VFD generating switching transients at hundreds of events per hour continuously degrades the insulation and microcircuitry of adjacent PLCs and HMIs — producing "unexplained intermittent control failures" that maintenance teams routinely misdiagnose.

1.1 The Cost of Inadequate Industrial Surge Protection

Hardware replacement is usually the smaller loss. The real exposure is downtime.

Equipment TypeReplacement CostTypical DowntimeTotal Event Cost
PLC (mid-range)$3,000–$20,0004–24 hours$15,000–$80,000
VFD (50–200 kW)$5,000–$30,0008–48 hours$25,000–$150,000
Industrial HMI$2,000–$8,0002–8 hours$8,000–$40,000
CNC Controller$10,000–$60,00024–72 hours$50,000–$300,000
SCADA Server$15,000–$80,00024–96 hours$75,000–$400,000

Downtime cost basis: $5,000–$10,000/hour for general manufacturing; automotive lines reach $22,000/minute at benchmark rates.

A documented Illinois manufacturing case confirms the pattern: a storm destroyed multiple VFDs, and while hardware cost was "somewhat reasonable," production downtime ran into hundreds of thousands of dollars. The hardware cost of a complete industrial surge protection system — typically $500–$5,000 per panel — represents a fraction of a single prevented failure event.

2. What Is an Industrial Surge Protector (Industrial SPD)?

An industrial surge protector — also called an industrial SPD — is a panel-mounted device hardwired to the distribution busbar or DIN rail that clamps transient overvoltage to a safe level within nanoseconds. Under normal conditions it presents high impedance. When a transient overvoltage exceeds its threshold, it transitions within nanoseconds to a low-impedance state, diverting surge energy to the protective earth and clamping voltage to a safe residual level. It then resets automatically. The governing standard is published by the International Electrotechnical Commission (IEC).

An industrial SPD differs fundamentally from a consumer power strip:

  • Hardwired to the distribution panel busbar or 35mm DIN rail — not plug-in
  • Rated for repetitive industrial surges (15+ operations at nominal discharge current, per IEC 61643-11)
  • Classified and tested under IEC 61643-11 to defined waveforms and energy levels — not generic joule ratings
  • Equipped with status monitoring — mechanical thermal disconnect flag + remote signaling contacts for PLC/SCADA integration
  • Configured for 3-phase industrial systems at 400V/480V, with topologies for TT, TN-S, and TN-C earthing arrangements

For the core distinction between SPD types, see our Type 1 vs Type 2 vs Type 3 SPD Comparison Guide.

3. IEC 61643-11 Classification: Which Type Does Your Facility Need?

Selecting the wrong SPD type for an industrial application is the single most common specification error, and the fix is a three-question decision tree. IEC 61643-11 defines three device classes by test waveform and installation point.

Industrial surge protector type selection chart — Type 1 for service entrance (Iimp ≥ 12.5 kA), Type 2 for MCC distribution panels (Imax ≥ 40 kA), Type 3 for equipment level PLC VFD per IEC 61643-11
Figure 2. IEC 61643-11 industrial SPD type selection guide — Type 1 at service entrance, Type 2 at MCC/distribution panels, Type 3 at PLC and VFD equipment level
TypeTest WaveformKey ParameterInstallation PointTypical Application
Type 110/350 µsIimp (12.5–50 kA)Main service entrance / MDBFacilities with external LPS or overhead supply
Type 28/20 µsIn, Imax (20–80 kA)MCCs, sub-distribution boardsStandard industrial surge protection layer
Type 31.2/50 µs + 8/20 µsUp (≤ 1.0 kV)Adjacent to PLCs, VFDs, HMIsFinal protection for sensitive electronics
Type 1+2BothIimp + ImaxMain board when LPS presentCompact combined solution

3.1 Selection Decision

Does your facility have an external Lightning Protection System (LPS) — rooftop rods, down conductors?
Yes: Type 1 SPD at service entrance is mandatory per IEC 62305. Type 1+2 combined recommended.
No: Type 2 SPD at the main distribution panel is the minimum requirement.

Do you operate VFDs, PLCs, or CNC controllers?
Yes: Add a Type 3 industrial surge protector at each control panel for final protection below the transistor damage threshold.

Note: The most dangerous specification shortcut is comparing kA numbers across types — a Type 1 Iimp = 12.5 kA (10/350 µs) carries far more energy than a Type 2 Imax = 40 kA (8/20 µs), despite the lower kA number. The 10/350 µs waveform tests charge (Q) and specific energy (∫i²dt), not just peak current. Never compare kA ratings across SPD types without specifying the waveform.

For circuit breaker coordination with SPDs, see our Circuit Breaker vs Surge Protector Coordination Guide.

4. Key Specifications for an Industrial Surge Protector

Four parameters — Imax, In, Up, and Uc — determine whether an SPD will actually survive and protect against the surges your facility generates. Getting any one of them wrong causes either premature failure or inadequate protection.

4.1 Imax — Maximum Discharge Current

The peak current the device discharges once without failing, at the 8/20 µs waveform.

Facility TypeExposure LevelRecommended Imax
Light manufacturing, offices, sub-panelsLow≥ 20 kA
Standard industrial — motors, MCCsMedium≥ 40 kA
Heavy industry, outdoor equipment, substationsHigh≥ 65–80 kA
Service entrance with external LPSVery highType 1+2; Iimp ≥ 12.5 kA

4.2 In — Nominal Discharge Current

The 8/20 µs current level the industrial SPD survives at least 15 times (per IEC 61643-11: three groups of five shots at defined phase angles). Higher In = longer operational life. Minimum for industrial MCCs: 20 kA.

4.3 Up — Voltage Protection Level

The maximum residual voltage that passes through the industrial surge protector to downstream equipment. Up must be lower than the impulse withstand voltage (Uw) of the most sensitive load.

Equipment TypeMax Tolerable Voltage (Uw)Required Up
Standard motors, lighting~2,500 VUp ≤ 2.0 kV
Contactors, relay panels~2,000 VUp ≤ 1.5 kV
VFDs (Insulated-Gate Bipolar Transistor, IGBT-based)~1,200 VUp ≤ 1.0 kV
PLCs, HMIs, SCADA~800 VUp ≤ 0.8 kV (Type 3 required)
5V/3.3V logic circuits~500 VUp ≤ 0.5 kV (Type 3, close-coupled)

4.4 Uc — Maximum Continuous Operating Voltage

The maximum Root Mean Square (RMS) voltage continuously applicable to the SPD. Undersizing Uc causes continuous conduction and premature thermal failure — one of the most common causes of unexplained SPD failures in the field.

SystemNominal VoltageMinimum UcRecommended Uc
230V TN-C / TN-S230V AC253V (1.1×Uo)275V or 320V
230V TT230V AC253V275V or 320V
400V TN systems400V AC440V (L-N)440V or 480V
480V systems (US/Asia)480V AC530V550V or 600V
IT (no neutral)230/400V ACLine-to-line440V

4.5 Remote Signaling Contact

Industrial-grade SPDs include a changeover contact (SPDT, 250V AC) that wires directly to a PLC digital input or Building Management System (BMS) alarm point. When the Metal Oxide Varistor (MOV) sacrifices itself after a major surge, the contact state changes, triggering an automated maintenance alert before the next surge event finds the panel unprotected. For critical 24/7 industrial facilities, this feature is not optional.

5. Earthing System Compatibility: The Detail Most Engineers Overlook

The earthing system determines SPD topology, and misapplying it can create unauthorized N-PE bonds, disable Residual Current Device (RCD) protection, and generate unsafe touch voltages during surge events. This is governed by IEC 60364.

Field identification: Open the main panel. If Neutral and Earth bars are bonded together at the service entrance → TN system. If they connect to separate electrodes → TT system.

Earthing SystemSPD ConfigurationKey Note
TN-C (PEN conductor)3+0 — connect to PEN busRCD-type SPDs prohibited
TN-S3+0 or 4+04+0 recommended for dedicated N protection
TN-C-S3+0 downstream of the split pointConfirm split location before specifying
TT (own earth electrode)3+1 mandatoryGas Discharge Tube (GDT) module on N-PE path required

Why TT requires 3+1: In a TT system, the local earth electrode impedance is high and variable. During a surge, neutral-to-earth potential rises significantly — creating dangerous touch voltages and potentially defeating RCD operation. The dedicated N-PE spark gap provides a controlled discharge path. A 3+0 device in a TT installation leaves this overvoltage completely uncontrolled.

Note: IEC 61643-11:2025 increased the TT Temporary Overvoltage (TOV) multiplier from 1.45 to 1.5 Uc — verify that SPDs for TT sites meet the updated TOV requirement.

For a complete earthing system guide, see our IEC 61643-11 Standards Guide.

6. Industrial Surge Protector Applications

MCCs, PLC cabinets, VFD panels, and CNC control enclosures each have distinct surge exposure profiles and require correspondingly specific SPD placement. The sections below cover each in turn.

6.1 Motor Control Centers (MCCs)

Industrial surge protector layout for heavy industry facility — isometric view showing Type 1+2 SPD at main transformer substation, Type 2 SPD at sub-distribution room, Type 3 SPD at process equipment floor per IEC 61643-11 and IEC 62305
Figure 3. Heavy industry facility surge protection layout — Type 1+2 SPD at main substation → Type 2 SPD at sub-distribution room (Imax ≥ 40 kA) → Type 3 SPD at process equipment floor (Up ≤ 1.0 kV), per IEC 61643-11 + IEC 62305

Motor starter circuits generate high-frequency switching transients every time a motor starts or stops. A 200 kW induction motor drawing 400A through a contactor creates back-EMF exceeding 2,000V on the 400V bus — directly threatening adjacent VFDs and PLC I/O modules on the same distribution.

Recommended: Type 2 industrial surge protector (Imax ≥ 40 kA) at the MCC main incomer. After retrofitting SPDs at key MCC panelboards, a U.S. automotive plant case reduced surge-related equipment failures by approximately 90% within six months.

6.2 PLC Surge Protection

PLCs are IEC Category I loads (Uw ≈ 800V), requiring Up ≤ 0.8 kV — only achievable with a Type 3 device. PLC I/O modules at 24VDC logic levels have maximum input voltage tolerance of 30–35V; a 1,500V surge coupled through the 24VDC power supply can destroy an entire I/O rack.

Complete PLC surge protection requires three layers:

  1. Type 2 SPD at the 400V/230V panel feeding the control transformer
  2. Type 3 SPD at the 230V output before the 24V SMPS (on DIN rail inside the PLC cabinet)
  3. Signal-line SPDs on all field sensor and communication cables entering from outdoor or long-distance runs (RS-485, Profibus, Ethernet, 4–20 mA)

6.3 VFD and Servo Drive Protection

VFDs generate high-frequency switching noise internally while remaining vulnerable on the power input. IGBT modules have a typical breakdown voltage of ~1,200V — requiring a Type 3 SPD with Up ≤ 1.0 kV at each drive panel. Install a Type 2 SPD upstream of the VFD feeder breaker to handle the bulk energy; the Type 3 provides the final voltage clamp.

6.4 CNC Machine Tools and Automation Lines

Computer Numerical Control (CNC) systems combine two vulnerable subsystems in one enclosure: servo drives (IGBT-based, breakdown ~1,200V) and precision encoder feedback electronics (5V logic, breakdown ~10V). A single surge event can simultaneously destroy the power drive and the feedback electronics. A Type 3 industrial surge protector with Up ≤ 0.8 kV at the CNC control cabinet, coordinated with a Type 2 at the zone distribution panel, is standard practice. Full CNC controller replacement routinely exceeds $50,000.

7. Installation Rules That Determine Whether Your SPD Actually Works

Two installation details — lead length and backup protection — determine whether a correctly specified SPD actually delivers its rated protection level in the field. Both are frequently overlooked during panel wiring.

7.1 The 0.5 m Lead Length Rule

The total conductor length from the phase bus to the SPD, plus SPD to the PE bar (L1 + L2), must not exceed 0.5 meters. Every additional meter of wire adds ~1 µH inductance. At a surge rise rate of 10 kA/µs, that adds 1,000V of inductive voltage drop — directly added to the SPD's Up and negating its rated protection level.

In large industrial MCC cabinets where 0.5 m is geometrically impossible, wiring the SPD as a long branch tap defeats its rated Up. Use the V-wiring method instead: route the main cable through the SPD terminals to the load, reducing the effective branch lead length to near zero.

7.2 Upstream Backup Protection

IEC 60364-5-53 mandates an upstream Miniature Circuit Breaker (MCB) or gG fuse for every SPD. The backup device must:

  • Allow the SPD to conduct during legitimate surge events without tripping
  • Clear fault current if the SPD fails to short circuit
  • Not create a selectivity conflict with the upstream main breaker

Typical sizing: 125A gG fuse for a 40 kA Type 2 device. Always confirm against the manufacturer datasheet. For detailed sizing charts, see our Circuit Breaker vs Surge Protector Coordination Guide.

8. Standards and Certifications

Five standards govern industrial SPD specification and installation worldwide, and the applicable set depends on the target market.

StandardScopeMarket Applicability
IEC 61643-11Performance and testing for LV SPDs; defines Type 1/2/3, test waveforms, Up, In, Iimp, TOVEurope, Middle East, Asia, Africa, South America
IEC 60364-5-53SPD selection and installation; 0.5 m rule, earthing compatibility, backup protectionAll IEC markets
IEC 62305Lightning protection systems; mandates Type 1 placement where LPS is installedAll IEC markets
IEC 60364-4-44Overvoltage categories (I–IV) and Uw valuesUsed to verify Up selection
CE MarkingLow Voltage Directive (LVD) + Electromagnetic Compatibility (EMC) Directives conformity; required for EEA market entryEuropean Union / EEA

TrilPeak industrial surge protectors carry IEC 61643-11 type-test certification and CE marking — covering EU, Middle East, and Asia-Pacific project requirements. For North American installations, UL 1449 5th Edition applies; the Type 1/2/3 terminology overlaps but test parameters differ.

9. Specification Checklist for Industrial Surge Protectors

Eleven checkpoints cover system voltage through certification, and skipping any one of them is the most common source of field failures.

StepCriteriaAction
1System voltage400V (EU/Asia) or 480V (North America)?
2Earthing systemTN-C / TN-S / TT → determines 3+0 or 3+1 configuration
3External LPS present?Yes → Type 1 or 1+2 mandatory at MDB
4VFDs or PLCs present?Yes → Type 3 required at equipment panels
5Imax / IimpBased on fault level, zone, and lightning exposure (Ng from local lightning density map)
6Up targetMatch to most sensitive downstream equipment (see Up table above)
7Uc value≥ 1.1 × Un; see Uc table for 230V / 400V / 480V systems
8Lead lengthConfirm L1 + L2 ≤ 0.5 m in panel layout; plan V-wiring if not
9Remote signalingSpecify for 24/7 operations; connect to PLC digital input or BMS
10Backup protectiongG fuse sized per manufacturer datasheet; confirm Short-Circuit Current Rating (SCCR)
11CertificationIEC 61643-11 + CE (international) or UL 1449 (North America)

10. Conclusion

An industrial surge protector specified correctly — right IEC type, right Imax/Iimp rating, right earthing topology, 0.5 m lead rule enforced, remote monitoring integrated — is among the highest-ROI items in any industrial electrical system budget. The hardware cost is in the hundreds of dollars. The risk it mitigates is in the hundreds of thousands to millions per event.

The layered strategy: Type 1 or 1+2 at the service entrance, Type 2 at MCCs and distribution boards, Type 3 at PLC cabinets and VFD panels. Get the earthing system topology right before specifying. Enforce the lead length rule during installation. Specify remote contacts for critical 24/7 processes.

For the signal-line and DC bus protection layers inside PLC control panels, see our PLC surge protection guide. For product selection across all SPD types, browse our full surge protective device range.

11. Frequently Asked Questions

11.1 What is the difference between an industrial surge protector and a residential one?

Industrial surge protectors are panel-mounted, DIN-rail devices tested to IEC 61643-11 to handle thousands of amps (kA) of discharge current, at rated voltages for 3-phase industrial systems (400V/480V). They include remote signaling contacts, are rated for repetitive industrial transients, and are hardwired to the distribution system. Consumer plug-in strips are Type 3 devices rated for a few hundred joules maximum — they would be instantly destroyed by a typical industrial switching transient.

11.2 Do I need a Type 1 or Type 2 industrial surge protector for my factory?

If your facility has external lightning protection (rooftop lightning rods, down conductors, ground electrodes), you must install a Type 1 SPD at the service entrance per IEC 62305. The lightning current directed to ground by the LPS causes Ground Potential Rise that back-feeds into the electrical system — only a Type 1 rated for the 10/350 µs waveform can handle this energy. Without an external LPS, a Type 2 at the main distribution panel is the minimum requirement.

11.3 How many industrial surge protectors does a factory need?

Most industrial facilities require a minimum of two protection stages: a Type 2 at the main distribution panel or MCC incomer, and a Type 3 at each control panel containing PLCs, VFDs, or HMIs. Large facilities with external LPS require three stages: Type 1 at the service entrance, Type 2 at sub-distribution, and Type 3 at control equipment. The number of Type 2 devices depends on the number of MCCs and sub-distribution panels.

11.4 What causes an industrial surge protector to fail prematurely?

The four most common causes: incorrect Uc — an SPD with Uc below 1.1× system voltage conducts continuously and fails thermally; wrong earthing topology — a 3+0 SPD in a TT system leaves the N-PE path unprotected; excessive lead length — wiring the SPD more than 0.5 m from the busbar adds inductive voltage drop that defeats clamping; and no backup protection — without a correctly sized upstream fuse, a failed SPD cannot safely disconnect.

11.5 Can one industrial surge protector protect the entire factory?

No. A single SPD at the service entrance reduces incoming surge energy but cannot protect equipment located further downstream. Per IEC 62305, equipment sensitive to overvoltage requires local protection — the cable separation distance between the service entrance SPD and sensitive loads determines how much residual voltage reaches them. A coordinated multi-stage approach with a minimum 10-meter cable separation between Type 2 and Type 3 devices is required for PLC and VFD protection.

11.6 What maintenance do industrial surge protectors require?

Monthly: visual inspection of the status indicator flag — green means operational, red means the MOV failed and needs immediate replacement. Annual: thermal imaging of SPD terminals and connections, grounding resistance verification below 10Ω, and review of BMS/SCADA event logs for surge frequency trends. Post-event: inspect immediately after any confirmed lightning strike or major utility fault, even if indicators still show green, since partial MOV degradation is not always externally visible.

11.7 How do I know if my industrial SPD is still protecting my equipment?

All industrial SPDs include a visual status indicator: green means the thermal disconnect is intact and the MOV is operational; red means the MOV has sacrificed itself and needs immediate replacement. Models with remote signaling provide a changeover contact wired to a PLC digital input for 24/7 automated monitoring. A green indicator does not guarantee full remaining surge-handling capacity, since MOVs degrade incrementally — high-surge environments warrant replacement on a defined schedule rather than purely on indicator status.

11.8 What is the typical lifespan of an industrial surge protector?

SPD lifespan depends on surge frequency and energy, not calendar time. In a stable industrial environment with a stable utility and infrequent storms, a quality MOV-based industrial surge protector can last 10 to 15 years. In high-lightning-exposure areas or facilities with heavy internal switching such as large motor starters or welding equipment, 3 to 7 years is more realistic, because the MOV sacrifices itself incrementally with each surge event by design.

11.9 What is the correct industrial surge protector for a 480V 3-phase MCC panel?

For a 480V TN-C-S system, specify a Type 2 SPD with Uc at least 530V (1.1 × 480V), Imax at least 40 kA per pole, Up at or below 2.5 kV (Category III), and SCCR meeting the available fault current at the MCC bus. A 3-pole or 4-pole configuration (L1/L2/L3/N to PE) is standard. Confirm UL 1449 listing if required by the local Authority Having Jurisdiction (AHJ).

11.10 How do I calculate ROI for an industrial surge protection investment?

Multiply the probability of a surge event occurring within 12 months — typically 0.1 to 0.5 for lightning-exposed industrial sites, based on regional lightning density and grid stability — by the expected loss if it happens: hardware replacement cost plus downtime hours times hourly downtime cost. Example: a general manufacturing plant at 0.2 probability with $30,000 hardware and 4 hours at $260,000/hour downtime cost yields roughly $214,000 in expected annual loss exposure. Compared against a complete Type 1+2 installation typically costing $2,000–$8,000, payback is usually under one month.

11.11 How do I evaluate industrial surge protector vendors or suppliers?

Four criteria separate a specification-grade supplier from a generic one: type-test certification showing actual Iimp, Imax, and Up values under the correct waveform rather than just a datasheet claim; CE marking with LVD and EMC Directive conformity for EEA-bound projects; waveform-specific documentation, meaning a credible manufacturer can provide the 10/350 µs or 8/20 µs test curve on request; and manufacturing transparency, where factory-direct sourcing with OEM or private label capability generally indicates the supplier controls its own testing and quality process rather than reselling third-party stock. TrilPeak SPDs are manufactured in-house and carry IEC 61643-11 type-test certification and CE marking.

11.12 What is the typical lead time for industrial surge protectors?

Lead time depends on the specific model, quantity, and whether custom Iimp/Imax ratings, enclosure options, or private-label branding are required — there is no single industry-standard number. Stock configurations generally ship faster than custom-built Type 1+2 assemblies or large multi-panel orders requiring type-test documentation packages. For a project-specific timeline, share the required specification and quantity directly with the supplier so the lead time reflects actual current production capacity rather than a generic estimate.

11.13 What environmental protection rating (IP rating) does an industrial SPD need?

Standard industrial SPDs — including TrilPeak's Type 1, Type 2, and Type 3 range — are rated IP20, meaning they are designed for installation inside a distribution panel, MCC cabinet, or enclosure, not for direct outdoor exposure. IP20 is correct for this application because the SPD relies on the panel's own enclosure, typically IP54 to IP66, for environmental protection, while the SPD itself only needs basic protection against accidental contact and small foreign objects. For SPDs mounted in genuinely outdoor or unenclosed locations, the enclosure — not the SPD — must carry the higher IP rating.
