Power Panel Surge Protection: 5-Step Engineering Guide
The main electrical panel is not just a distribution point โ it is the primary breach point. Every external surge that enters a facility, whether from a lightning strike on overhead supply lines, a utility capacitor bank switching event, or a fault-induced ground potential rise, passes through the service entrance before reaching any downstream equipment.
IEEE Std 1159-2019 documents service entrance transients of 2โ6 kV peak as a common occurrence. IEEE Std 1100-2021 (the Emerald Book) classifies capacitor switching and recloser operations as the dominant external transient source at industrial service entrances โ Category C High Exposure events requiring 6 kV/3 kA withstand capability. Without dedicated power panel surge protection at this first point of entry, every VFD, PLC, HMI, and control system in the facility is exposed to full-magnitude surge energy.
Quick Answer: What Is Power Panel Surge Protection?
Power panel surge protection is the installation of industrial-grade Surge Protective Devices (SPDs) at the main electrical service entrance or primary distribution board (MDB) of a facility โ the first line of defense before surge energy reaches any downstream equipment.
Under IEC 61643-11, a Type 1+2 combined SPD is the standard recommendation for most industrial and commercial panels: it handles direct lightning impulse currents (10/350 ยตs, Iimp โฅ 12.5 kA per pole) and switching transients (8/20 ยตs, Imax โฅ 40 kA) in a single DIN-rail device.
A Type 1 alone is mandatory when an external lightning protection system (LPS) is present; a Type 2 alone is acceptable only for panels with underground supply, no LPS, and low lightning exposure (Ng โค 3 strikes/kmยฒ/year). Hardware cost: $200โ$2,000 per panel. Unprotected surge event cost: $15,000โ$400,000 in equipment and downtime per incident.

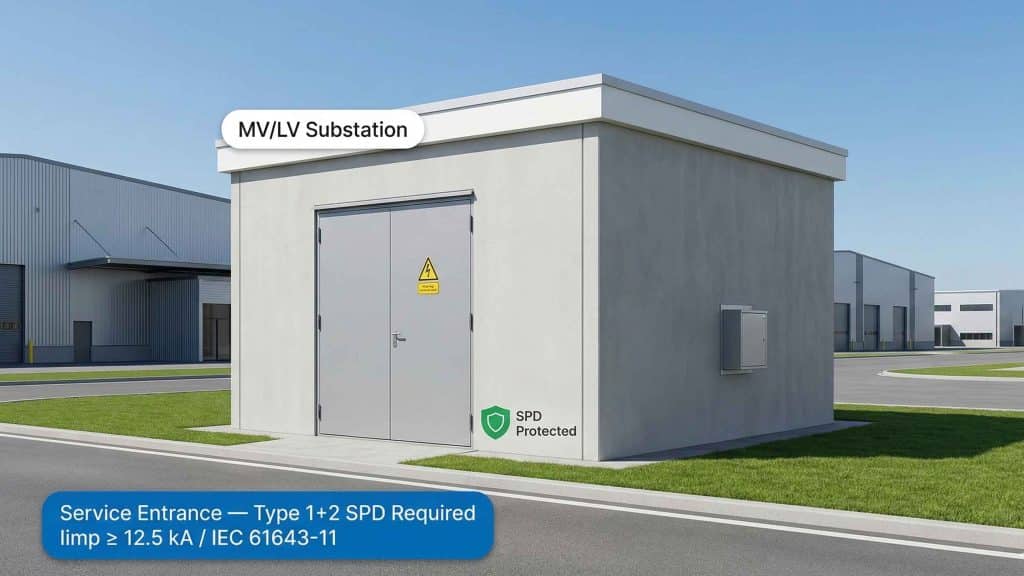

Why the Power Panel Is the Critical Surge Entry Point
Three distinct surge mechanisms converge at the service entrance, each with different energy profiles and frequencies. Understanding all three is essential for correct power panel surge protection specification.
Direct and indirect lightning (LEMP). Overhead supply lines act as antennas, coupling lightning electromagnetic pulse energy into the facility even without a direct strike. A direct lightning attachment to the line injects impulse currents that follow the IEC 10/350 ยตs waveform โ high energy content defined not just by peak current but by charge (Q) and specific energy (โซiยฒdt). Indirect strikes generate induced transients of 2,000โ6,000 V peak at the service entrance per IEEE Std 1159-2019 classification. For an overview of complete lightning protection system design, see our lightning protection system guide.
Utility switching transients (SEMP). Capacitor bank switching, recloser operations, and fault-clearing events on the medium-voltage distribution network routinely produce oscillatory transients of 2โ4 per-unit magnitude at industrial service entrances โ equivalent to 1,000โ3,000 V on a 400V system. IEEE Std 1100-2021 Section 9.5.2 confirms these events reach 50/60 Hz plus high-frequency components up to 10 kV peak in severe cases. Unlike lightning, they are repetitive: a single industrial feeder may experience multiple switching events per year, each degrading unprotected MOVs incrementally.
Ground potential rise. During a major nearby fault or lightning discharge, local earth potential elevates within microseconds. The main panel, as the facility's central grounding and bonding point, sits at the epicenter. Surge current seeks remote earth through the phase conductors โ effectively back-feeding into the electrical system from the grounding electrode. This mechanism is the reason IEC 62305-4 designates the LPZ 0Bโ1 boundary (service entrance) as the highest-priority SPD installation point for power panel surge protection.
What enters through the main panel does not stay at the main panel. IEC 60364-4-44 documents that every 10 meters of cable between the panel SPD and downstream equipment adds 1โ2 kV of inductive voltage drop at typical 10 kA/ยตs surge fronts โ meaning the panel is the only location where the full surge energy can be intercepted before it propagates and multiplies through the distribution network.
IEC 61643-11 Classification for Power Panel SPDs
The correct SPD type for the main power panel is determined by three variables: external LPS presence, utility supply type (overhead vs underground), and local lightning density (Ng value). IEC 62305-4:2014 Clause 4.2 defines this through the Lightning Protection Zone framework. For a complete Type 1/2/3 parameter comparison, see our Type 1 vs Type 2 vs Type 3 SPD Comparison Guide.
| External LPS Present? | Utility Supply | Lightning Density (Ng) | Required SPD at Main Panel |
|---|---|---|---|
| Yes | Overhead or Underground | Any | Type 1 or Type 1+2 โ mandatory per IEC 62305 |
| No | Overhead | High (Ng > 3/kmยฒ/yr) | Type 1+2 Combined โ recommended |
| No | Overhead | Low (Ng โค 3/kmยฒ/yr) | Type 2 (Imax โฅ 40 kA) โ minimum |
| No | Underground | High (Ng > 3/kmยฒ/yr) | Type 2 (Imax โฅ 40 kA) |
| No | Underground | Low (Ng โค 3/kmยฒ/yr) | Type 2 (Imax โฅ 20 kA) |
Table 1: SPD Type Selection Matrix for Main Power Panels (IEC 62305-4:2014)
Why Type 1+2 combined is now the standard industrial recommendation. A pure Type 1 device handles high-energy lightning impulse diversion but may not clamp residual voltage low enough to protect Category II and III equipment immediately downstream. A Type 1+2 combined device integrates both functions: a heavy-duty spark gap or high-energy MOV for 10/350 ยตs duty, plus a fast-acting varistor stage for 8/20 ยตs switching transients โ achieving both energy handling and low Up in a single panel-mounted unit. See TrilPeak's Type 1+2 combined SPD range for panel-level specifications.
The 10/350 ยตs vs 8/20 ยตs energy distinction. This is the most consequential specification error in panel SPD selection. IEC 62305-4:2014 Table 10 defines the Iimp requirements at the LPZ 0Bโ1 boundary by Lightning Protection Level: LPL I = 25 kA/pole, LPL II = 12.5 kA/pole, LPL III = 6.25 kA/pole (10/350 ยตs).
A Type 2 device with Imax = 40 kA (8/20 ยตs) cannot substitute for a Type 1 with Iimp = 12.5 kA (10/350 ยตs) at a lightning-exposed service entrance โ the 8/20 ยตs waveform carries a fraction of the energy content of the 10/350 ยตs waveform despite higher peak current numbers. This is why power panel surge protection at LPS-equipped facilities must specify Type 1 or Type 1+2, never Type 2 alone.
Key Specifications for Power Panel Surge Protection
Iimp โ Impulse Discharge Current (Type 1)
Defined by IEC 61643-11 Clause 6.2.2 as the peak current of the 10/350 ยตs waveform that the SPD survives per Class I test (1 positive + 1 negative impulse without flashover, erosion >0.8 mmยณ, or ฮT >10 K). Typical values for industrial service entrances:
| Facility / Exposure | Recommended Iimp (per pole) | IEC 62305-4 LPL Basis |
|---|---|---|
| Standard industrial, overhead supply, no LPS | 12.5 kA | LPL II |
| LPS-equipped facility or high-rise building | 25 kA | LPL IโII |
| High lightning density (Ng > 4/kmยฒ/yr), critical infrastructure | 25โ50 kA | LPL I |
| Facilities with rooftop solar PV (increased exposure) | 12.5โ25 kA | IEC 61643-32:2017 Clause 9.1.2 |
Table 2: Recommended Iimp by Facility Type
Imax โ Maximum Discharge Current (Type 2 element)
The single-event peak 8/20 ยตs current in the Type 2 element of a combined device. For main panel applications, Imax โฅ 40 kA per pole is the standard industrial minimum; 100 kA for high-exposure or mission-critical panels. TrilPeak's Type 1 SPD range covers Imax up to 120 kA for high-fault-current service entrances.
Up โ Voltage Protection Level
The residual voltage at the SPD terminals during rated surge current application. At the main panel (IEC Overvoltage Category IV location), the target Up depends on what the panel is protecting:
| Panel Location | IEC Category | Required Uw | Target Up at Panel |
|---|---|---|---|
| Main service entrance (MDB) | IV | 8 kV | โค 4 kV |
| Primary distribution / MCC feeder | III | 4 kV | โค 2.5 kV |
| Sub-panel feeding VFDs, PLCs | II / I | 2.5 / 1.5 kV | โค 1.5 kV (Type 2/3 cascade needed) |
Table 3: Up Target by Panel Location (IEC 60364-4-44)
Note: IEC 60364-4-44 cable attenuation adds 1โ2 kV per 10 m between the panel SPD and downstream equipment. A panel Up of 4 kV does not protect a PLC 20 m away without a downstream Type 2 stage. Complete power panel surge protection always requires a coordinated cascade โ not a single panel device.
Uc โ Maximum Continuous Operating Voltage
Must be โฅ 1.1 ร Un. Incorrect Uc is the most common cause of premature panel SPD failure in the field.
| System Voltage | Earthing | Minimum Uc | Recommended Uc |
|---|---|---|---|
| 230V AC | TN-C / TN-S | 253V | 275V or 320V |
| 230V AC | TT | 253V | 275V or 320V |
| 400V AC | TN systems (L-N) | 440V | 440V or 480V |
| 480V AC | TN-C-S (US/Asia) | 530V | 550V or 600V |
| 400V AC | IT (L-L exposure) | 440V | 440V |
Table 4: Uc Selection by System Voltage and Earthing Arrangement
SCCR โ Short-Circuit Current Rating
At the main panel, available fault current is at its highest point in the facility. The SPD's SCCR must equal or exceed the prospective short-circuit current at the service entrance. IEC 60364-5-53:2019 Table 2 ties backup fuse sizing to Imax:
| Imax (8/20 ยตs) | Maximum Upstream Fuse (gG) |
|---|---|
| โค 25 kA | 125 A |
| 50 kA | 160 A |
| 100 kA | 250 A |
Table 5: Backup Fuse Sizing per IEC 60364-5-53:2019 Table 2
Remote Signaling and Surge Counting
At the panel level, SPDs absorb the highest energy events in the facility. Remote alarm contacts (SPDT, 250V AC) wired into the BMS or PLC are non-negotiable for 24/7 operations โ a failed panel SPD leaves the entire facility unprotected against the next event. For comprehensive power panel surge protection, leading manufacturers now offer panel SPDs with Modbus RTU, BACnet MS/TP, and Ethernet interfaces for SCADA integration, with timestamped surge event logging. For guidance on knowing when to act on end-of-life signals, see our when to replace a surge protector guide.
Power Panel Surge Protection by Facility Type
Industrial Manufacturing Plants
Heavy manufacturing panels feed MCCs and large inductive loads that generate internal switching transients in addition to external exposure. Effective power panel surge protection in this context must handle both threats simultaneously. Recommended: Type 1+2 combined, Iimp โฅ 12.5 kA (25 kA for LPS-equipped facilities), Imax โฅ 100 kA, SCCR meeting the service entrance fault level. For a complete industrial protection strategy, see our industrial surge protector guide.
The low Up requirement of downstream PLCs and VFDs (Category I/II) cannot be met by the panel SPD alone โ a cascaded Type 2 at the MCC and Type 3 at control panels is required to complete the protection hierarchy. See our PLC surge protection guide for downstream coordination details.
Data Centers and Mission-Critical Infrastructure
Power panel surge protection for data center service entrances is specified at Iimp โฅ 25 kA even without an explicit LPS, to ensure zero degradation over a high-event operational life. Remote signaling into the BMS is mandatory. IEC 61000-4-5:2017 Table 6 requires panel-mounted smart metering and IoT equipment to withstand Level 3 surge immunity (2 kV CM, 1 kV DM) โ which defines the minimum Up target for the panel SPD at โค 1.2 kV let-through to these devices. For full data center protection design, see our data center surge protection guide.
Facilities with Rooftop Solar PV
IEC 61643-32:2017 Clause 6.1 states that installation of SPDs on both the DC and AC side of a PV system is mandatory unless a risk analysis per IEC 62305-2 proves otherwise. At the AC main panel where the PV inverter connects, Clause 9.1.2 requires a Type 1+2 or Type 2 SPD with In โฅ 20 kA (8/20 ยตs) and Iimp โฅ 12.5 kA (10/350 ยตs) for LPL IIโIII rooftop PV installations, with Up โค 1.5 kV to protect the inverter electronics. For complete PV system protection, see our solar surge protection guide.
Anti-islanding transients from inverter rapid shutdown generate 2โ4 per-unit overvoltages at the panel bus. This makes power panel surge protection for solar-equipped facilities a repetitive switching duty requirement, not just a single lightning event specification.
EV Charging Stations and EV Fleet Infrastructure
IEC 61851 (Ed. 4.0, 2025) Clause 5.1.2.3 references IEC 60364-5-53 Clause 534 for overvoltage protection at the supply panel feeding EV charging equipment: Type 2 minimum, Type 1 where lightning risk exists per IEC 62305-2. DC fast chargers (CCS/CHAdeMO, 50 kW+) generate inrush currents and PFC converter switching transients up to 3 kV at the main panel busbars. The IEA EV Outlook 2025 projects EV charger cycling will add 15โ25% annual transient events on LV networks by 2030. For EV-specific power panel surge protection, see our EV charger surge protection guide.
3-Phase Industrial Panels โ Petrochemical and Heavy Process
Petrochemical and offshore facilities operate in severe lightning exposure environments with stringent ATEX/IECEx enclosure requirements. Panel SPDs must be housed in IP54 or higher enclosures, with Iimp โฅ 25โ50 kA per pole and SCCR matching the high fault levels typical of transformer-fed industrial substations. The 3 phase panel surge protector in these environments must also coordinate with the facility's formal LPS (IEC 62305-3) and equipotential bonding network.
| Facility Type | Recommended SPD Type | Minimum Iimp | Special Requirements |
|---|---|---|---|
| Heavy Manufacturing (MCC-fed) | Type 1+2 Combined | 12.5โ25 kA | High SCCR; cascade to MCC Type 2 |
| Data Center / Mission-Critical | Type 1+2 Combined | 25 kA | Modbus/BACnet BMS integration mandatory |
| Rooftop Solar PV (grid-tied) | Type 1+2 (AC side) | 12.5โ25 kA | Coordinate with DC-side SPD at inverter |
| EV Charging Infrastructure | Type 1+2 Combined | 25 kA | High Imax (โฅ100 kA) for DC fast charger panels |
| Petrochemical / Offshore | Type 1+2 Combined | 25โ50 kA | IP54+ enclosure; ATEX/IECEx certified |
| Commercial Office / Retail | Type 2 (or 1+2 if LPS) | 12.5 kA (if LPS) | HVAC and lighting panel protection โ see our HVAC surge protector guide |
Table 6: Application Matrix โ Facility Type vs. Recommended SPD Specification
Installation Requirements for Panel-Level Surge Protection
The 0.5 m Lead Length Rule โ IEC 60364-5-53 Clause 534.4.2.3
The maximum connecting conductor length between the SPD terminals and the panel busbar/PE bar is 0.5 meters total (L1 + L2). This is not a guideline โ it is a codified requirement in IEC 60364-5-53:2019 Clause 534.4.2.3.
The physics: each 1 m of conductor adds approximately 1 ยตH inductance. At a surge rise rate of 10 kA/ยตs, that adds 1,000 V of inductive voltage drop directly to the SPD's Up. A 1 m lead violation on a device rated Up = 1.5 kV effectively delivers 2.5 kV to the downstream busbar โ completely negating the panel surge protection specification.
When 0.5 m is geometrically impossible in large industrial switchgear, IEC 60364-5-53:2019 Annex C Figures C.1โC.2 formally defines the CT2 U-connection (parallel busbar tap) as the approved alternative.
Earthing System Configuration at the Panel
| Earthing System | SPD Configuration | Key Constraint |
|---|---|---|
| TN-C (PEN conductor) | 3+0 โ connect to PEN bus | RCD-type SPDs prohibited; no separate N/PE |
| TN-S | 4+0 โ phases + neutral to PE | Dedicated N protection included |
| TN-C-S | 3+0 downstream of PEN split | Confirm split location before specifying |
| TT | 3+1 mandatory | 3 MOVs (L-N) + high-energy GDT (N-PE) |
| IT | 3+0 with high Uc (440V) | Phase-to-phase fault voltage exposure |
Table 7: Earthing System vs. SPD Configuration at the Main Panel
For TT systems, IEC 61643-11 TOV requirements are more stringent: the SPD must withstand UT at 1.45โ1.5 ร Uc (updated to 1.5 in the 2025 revision) for the specified duration. Verify that panel SPDs for TT installations meet the updated TOV test value. Understanding single-phase vs three-phase power system differences is essential before finalizing earthing topology.
PE Conductor Cross-Section
Industry practice based on IEC 60364-5-53 Clause 534.4.8 thermal withstand requirements: minimum 16 mmยฒ Cu for the PE conductor connecting the SPD earth terminal to the main earth bar at the panel level. This applies to Type 1 and Type 1+2 devices at the service entrance.
Retrofitting into Existing Panels
IEC 60364-5-53 Annex C confirms that parallel tap (CT1/CT2) connections to existing busbars are the standard retrofit method โ series insertion is not permitted as it interrupts supply continuity. Standard IEC distribution board form factors accept 18 mm/pole DIN-rail modules (54 mm total for 3-phase Type 2; wider for Type 1+2 combined). For backup fuse sizing and coordination calculations, see our circuit breaker vs surge protector coordination guide.
Coordinating Panel SPD with Downstream Protection
A Type 1+2 at the main panel is the first stage of power panel surge protection, not the complete solution. IEC 62305-4 Clause 6.2.4 mandates minimum 10 meters of cable separation between cascaded SPD stages for inductive decoupling. When the panel and downstream sub-panel are closer than 10 m, a decoupling inductor must be inserted in series between the two SPD stages.
The cascade principle in practice: a panel SPD reducing a 10 kV incoming transient to 2.5 kV (Category III Up) still delivers a voltage that will destroy PLCs and VFDs rated for Category I (Uw = 1.5 kV). A Type 2 SPD at the MCC and a Type 3 SPD adjacent to each PLC or VFD cabinet complete the protection hierarchy. The panel SPD absorbs the bulk energy; downstream stages provide final voltage clamping.
Energy coordination between stages is verified per IEC 61643-11 Clause 6.5: the downstream Type 2 must survive maximum stress from the upstream Type 1 (confirmed by manufacturer coordination tables or cascade impulse test). Never mix SPD stages from different manufacturers without verifying coordination compliance. For guidance on complete power panel surge protection cascade design, contact our engineering team for project-specific coordination studies.
Standards and Certifications Reference
| Standard | Scope | Key Panel SPD Requirement |
|---|---|---|
| IEC 61643-11:2011+A1 | SPD performance and testing | Defines Type 1/2/3, Iimp, Imax, Up, Uc, TOV; requires Class I test (10/350 ยตs) for panel-level Type 1 |
| IEC 62305-4:2014 | LEMP protection within structures | LPZ 0Bโ1 boundary = Type 1 mandatory; Iimp per LPL in Table 10; 10 m cascade separation rule (Clause 6.2.4) |
| IEC 60364-5-53:2019 | SPD selection and installation | Clause 534.4.2.3: 0.5 m lead rule; Annex C: U-connection method; Table 2: fuse sizing |
| IEC 60364-4-44 | Overvoltage categories | Category IV for main panel; Uw = 8 kV; defines Up coordination target |
| IEC 61643-32:2017 | SPDs for PV systems | Clause 6.1: AC panel SPD mandatory for grid-tied PV; Clause 9.1.2: Type 1+2 for rooftop LPL IIโIII |
| CE Marking | EU/EEA market conformity | LVD + EMC Directive compliance; required for international B2B projects |
Table 8: Standards Reference for Power Panel Surge Protection
For official standard documentation, the IEC webstore provides access to IEC 61643-11, IEC 62305-4, and IEC 60364-5-53. For lightning density maps (Ng values) by region, the IEEE Xplore digital library hosts IEEE Std 1159 and IEEE Std 1100 (Emerald Book). The IEA EV Outlook 2025 quantifies the projected growth in LV network transient events from EV charger expansion through 2030.
TrilPeak power panel surge protection devices are IEC 61643-11 certified and CE marked โ covering EU, Middle East, Asia-Pacific, and international B2B project requirements. For North American projects, UL 1449 5th Edition (NEC Article 285) applies; the NEC recommends but does not mandate service entrance SPDs, in contrast to the IEC risk-based mandatory approach. See our full IEC 61643-11 standards guide for certification details.
Installation Checklist for Power Panel Surge Protection
| Step | Parameter | Requirement | โ |
|---|---|---|---|
| 1 | SPD Type | LPS or overhead supply โ Type 1 or 1+2 | โ |
| 2 | Earthing topology | TT โ 3+1; TN-S โ 4+0; TN-C โ 3+0 | โ |
| 3 | Iimp | โฅ 12.5 kA (LPL II); โฅ 25 kA if LPS or high Ng | โ |
| 4 | Imax | โฅ 40 kA standard industrial; โฅ 100 kA critical | โ |
| 5 | Up | โค 4 kV at panel (Category IV); verify cascade for downstream | โ |
| 6 | Uc | โฅ 1.1 ร Un โ confirm for 230V / 400V / 480V system | โ |
| 7 | SCCR | Exceeds prospective fault current at service entrance | โ |
| 8 | Lead length | L1 + L2 โค 0.5 m; U-connection if physically impossible | โ |
| 9 | PE conductor | โฅ 16 mmยฒ Cu to main earth bar | โ |
| 10 | Backup fuse | gG fuse per IEC 60364-5-53 Table 2; sized to Imax | โ |
| 11 | Cascade separation | โฅ 10 m to next downstream SPD stage; inductor if < 10 m | โ |
| 12 | Remote monitoring | Alarm contact wired to BMS/PLC DI for 24/7 monitoring | โ |
Table 9: 12-Point Installation Compliance Checklist (IEC 60364-5-53 / IEC 62305-4)
Frequently Asked Questions About Power Panel Surge Protection
Power panel surge protection is the installation of industrial-grade SPDs at the main electrical service entrance or primary distribution board of a facility. It intercepts high-energy external surges โ from lightning impulses and utility switching events โ before they reach the building's internal electrical network. Under IEC 61643-11, panel-level protection uses Type 1 or Type 1+2 combined devices rated for the high-energy 10/350 ยตs waveform that characterizes direct lightning current at the LPZ 0Bโ1 boundary.
If the facility has an external lightning protection system (lightning rods, down conductors) or is fed by overhead utility lines in a high lightning density zone (Ng > 3/kmยฒ/year), IEC 62305-4 mandates a Type 1 SPD at the service entrance. A Type 2 is acceptable at the main panel only for facilities with underground supply, no LPS, and low lightning exposure. For most industrial and commercial facilities, a combined Type 1+2 is the standard recommendation regardless. See our Type 1 vs Type 2 vs Type 3 comparison guide for detailed selection criteria.
Panel-level SPDs are hardwired, industrial-grade devices rated for tens of thousands of amps (Iimp 12.5โ50 kA) tested to IEC 61643-11 Class I test conditions. Point-of-use plug-in devices are rated in joules, typically handling 1โ6 kA maximum. A utility switching transient of 3,000 V at the service entrance would instantly destroy a point-of-use device; a panel SPD diverts that energy to the protective earth conductor without failure.
The SPD rating is not determined by the panel's load current (200A or 400A) but by the surge exposure at that panel. The key parameters are Iimp (based on LPS presence and Ng value), Imax (based on exposure zone), Up (based on downstream equipment sensitivity), and SCCR (based on available fault current at the service entrance). For a standard 200A industrial panel: Type 2, Imax โฅ 40 kA, Uc โฅ 275V (230V system) or โฅ 530V (480V system). For a 400A panel with overhead supply: Type 1+2, Iimp โฅ 12.5 kA, Imax โฅ 100 kA.
Yes. IEC 60364-5-53 Annex C formally approves parallel busbar tap (U-connection / CT2 method) as the retrofit installation approach. Standard IEC distribution boards accept 18 mm/pole DIN-rail SPD modules. The critical constraint is achieving the 0.5 m maximum lead length from the busbar tap to the SPD terminals and from the SPD to the PE bar. If panel geometry prevents this, V-wiring (routing the main conductor through the SPD terminals) is the IEC-approved alternative.
IEC 61643-32:2017 Clause 6.1 makes AC panel SPD installation mandatory for grid-tied PV systems. The panel sees two surge sources: the utility grid and the PV array (which acts as an elevated, exposed conductor). An anti-islanding shutdown can generate 2โ4 per-unit overvoltages at the panel bus from rapid inverter disconnection. A Type 1+2 panel SPD with Up โค 1.5 kV protects the inverter electronics; dedicated DC-side SPDs at the inverter combiner box address the PV string surge path. Both must be installed and coordinated.
Residential whole-house devices are lightweight Type 2 units (typically Imax 20โ40 kA) designed for single-phase 120/240V residential panels with low available fault current. Industrial panel SPDs are Class I or combined Class I+II devices tested to IEC 61643-11 with Iimp 12.5โ50 kA, SCCR up to 200 kA, modular replaceable cartridges, and remote alarm contacts for BMS/SCADA integration. They are configured for 3-phase 400V/480V systems and earthing arrangements (TN, TT, IT) that residential devices do not address.
A Type 1+2 combined DIN-rail SPD for a 3-phase 400V industrial main panel (Iimp 12.5 kA, Imax 100 kA, with remote signaling) typically costs $200โ$800 in hardware. High-specification devices (Iimp 25 kA, Imax 200 kA, Modbus monitoring) cost $500โ$2,000. Complete installation including fusing, PE conductor, and commissioning: $500โ$5,000 per panel. A single unprotected surge event involving VFD and PLC replacement plus production downtime typically costs $15,000โ$400,000 per incident.
A 3 phase panel surge protector protects each phase conductor (L1, L2, L3) simultaneously with matched protection modules, plus neutral and PE paths depending on earthing topology (3+0 for TN-C, 4+0 for TN-S, 3+1 for TT). Single-phase devices protect only one phase. In a 3-phase system, a surge on any one phase can couple to others through the neutral and earthing network โ making coordinated 3-phase or 4-pole protection essential. See our 3-phase surge protector range for product specifications.
Under IEC 60364-5-53:2019 Clause 534.4.3.1 and IEC 62305-4, power panel surge protection at the service entrance is mandatory when: (1) a formal LPS (lightning rod system) is installed on the building; (2) the facility is supplied by overhead lines in areas with lightning risk per IEC 62305-2 risk assessment; (3) the facility integrates rooftop PV per IEC 61643-32 Clause 6.1. For other cases, panel surge protection is strongly recommended by IEC 60364-5-53 but conditional on the risk assessment outcome.
Visual inspection of the status indicator (green = operational, red = MOV sacrificed; replace immediately) at every scheduled panel maintenance interval โ minimum quarterly in industrial environments. After any confirmed major surge event, inspect immediately even if the indicator shows green: partial MOV degradation is not always externally visible. Panel SPDs with surge counters enable data-driven replacement decisions. Annual inspection should include thermal imaging of SPD terminals and grounding resistance verification (<10 ฮฉ). See our when to replace a surge protector guide for detailed replacement criteria.
Conclusion
Power panel surge protection is the highest-priority installation in any surge protection strategy: it is the only point in the electrical system where the full external surge energy can be intercepted before it propagates into the distribution network. The engineering requirement is precise โ correct IEC 61643-11 type based on LPS presence and lightning exposure, Iimp matched to the LPL from IEC 62305-4 Table 10, Uc sized to the system voltage and earthing arrangement, lead length enforced to 0.5 m per IEC 60364-5-53, and cascade coordination verified to the downstream Type 2 stage.
The addition of solar PV, EV charging infrastructure, and IoT monitoring equipment at the panel level further elevates the power panel surge protection specification requirements toward Type 1+2 combined devices with Iimp โฅ 25 kA and integrated communication. The panel SPD is not a standalone solution โ it is the first stage of a coordinated power panel surge protection cascade that continues through the MCC, sub-panels, and individual equipment cabinets.
Explore TrilPeak's IEC 61643-11 certified power panel surge protection range: Type 1 SPD ยท Type 2 SPD ยท Type 1+2 Combined SPD ยท Full SPD Range
Contact the TrilPeak engineering team for IEC 62305 risk assessment support, cascade coordination studies, and B2B specification assistance.
