3-Phase Surge Protector Selection Guide: How to Choose the Right SPD
Most engineers searching for a 3-phase surge protector already know they need one. The harder question is which one — and that's where most costly mistakes happen. A misapplied SPD doesn't just fail to protect your system; it can fail catastrophically under temporary overvoltage conditions, taking downstream equipment with it. According to a peer-reviewed study cited in IEEE literature, the leading cause of SPD failure in industrial installations is maloperation — incorrect ratings, improper coordination, and application errors — not end-of-life wear from surge duty.
This guide gives you a concrete, parameter-driven framework for selecting the right 3-phase surge protector for your system. Whether you're specifying for a factory MCC, a commercial distribution panel, or a utility-scale solar inverter output, the decisions below are what separate a protection system that works from one that looks right on paper.
Quick Selection Reference: 3-Phase Surge Protector by Application
- Industrial factory / MCC panel — Type 1+2 · Iimp ≥ 25kA · Uc ≥ 440V · Priority: ISCCR
- Commercial building distribution — Type 2 · In ≥ 40kA · Uc ≥ 385V · Priority: Up ≤ 2.5kV
- Data center AC supply — Type 2 · In ≥ 40kA · Uc ≥ 385V · Priority: Up ≤ 1.5kV
- Solar PV (3-phase inverter AC side) — Type 2 · In ≥ 40kA · Uc ≥ 385V · Priority: TOV withstand
- PLC cabinets / sensitive equipment — Type 2 + Type 3 · In ≥ 20kA · Priority: Up ≤ 1.5kV
- High-exposure / direct lightning risk — Type 1 at service entrance · Iimp ≥ 50kA · Uc ≥ 440V · Priority: Iimp + Up coordination
Why 3-Phase SPD Selection Is Different
A single-phase SPD protects one line-to-neutral path. A 3-phase surge protector must simultaneously handle surge energy across multiple phase-to-neutral, phase-to-phase, and phase-to-PE paths — with complete independence of each protection mode. In a TN-S 400V system, the SPD must cover L1-N, L2-N, L3-N, and PE simultaneously, while withstanding the highest possible temporary overvoltage on any single phase without thermal runaway.
EPRI laboratory testing of ASD-PLC systems (Product 1007577, 2002) confirmed that typical industrial control equipment can sustain permanent damage from surges between 1kV and 6kV on the three-phase AC power port — damage levels well within what an unprotected or incorrectly specified system will see during a nearby lightning event or utility switching transient. Understanding the difference between single-phase and three-phase power systems is essential context before specifying any SPD.
The error margin on 3-phase surge protector selection is smaller than it appears. Here's the framework.
6 Critical Selection Factors for 3-Phase Surge Protectors
Factor 1: Maximum Continuous Operating Voltage (Uc)
Uc is the highest r.m.s. voltage a 3-phase surge protector can tolerate indefinitely without degradation. Per IEC 61643-11, Uc must be at minimum equal to the highest expected service voltage — which is not the same as the system nominal voltage.
| Parameter | 400V TN-S System Value | Notes |
|---|---|---|
| Nominal phase-to-neutral voltage (Un) | 230V | Nameplate rating |
| Maximum service voltage (+10% tolerance) | 253V | EN 50160 upper limit |
| Recommended Uc (L-N mode, with margin) | ≥ 275V | Standard selection: 275V or 320V |
| Recommended Uc (L-L mode) | ≥ 440V | Required for phase-to-phase protection modes |
Common error: selecting Uc equal to nominal voltage. An SPD with Uc = 230V on a 230V nominal system operates at its thermal limit under normal grid fluctuation. Add a temporary overvoltage event and the MOV fails from heat stress — not from surge duty. Always apply a minimum 10–15% margin above the highest expected service voltage.
Factor 2: SPD Type Classification (Type 1 / Type 2 / Type 1+2)
IEC 62305-4 defines Lightning Protection Zones (LPZ) and maps them directly to SPD type requirements. The correct 3-phase surge protector type depends entirely on where in the LPZ hierarchy your installation point sits.
| LPZ Boundary | SPD Type | Test Waveform | Installation Point |
|---|---|---|---|
| LPZ 0 → LPZ 1 | Type 1 | 10/350μs (Iimp) | Service entrance, main switchboard |
| LPZ 1 → LPZ 2 | Type 2 | 8/20μs (In) | Sub-distribution panel |
| LPZ 2 → LPZ 3 | Type 3 | Combination wave | Equipment terminals |
The decision rule: Is there an external lightning protection system (LPS) on the building? → Type 1 required at service entrance. No external LPS but overhead supply lines or high-exposure location? → Type 1+2 combined device is the most cost-effective single solution. Sub-distribution panel or downstream of a Type 1? → Type 2 is sufficient.
The 10-meter coordination rule: IEC 61643-12 and IEC 60364-5-53 application guidance references a minimum ~10m cable separation between upstream and downstream SPDs for natural inductive decoupling. This is not a hard prescriptive number in IEC 61643-11 itself, but it represents the practical minimum. If your panel layout cannot achieve this distance, a combined Type 1+2 device at a single installation point is the correct solution — not two separate units positioned too close together.
For a complete breakdown of how Types 1, 2, and 3 differ in testing and application, see our Type 1 vs Type 2 vs Type 3 SPD comparison guide.
Factor 3: Discharge Current Rating (In and Iimp)
This is where buyers most often over-simplify when specifying a 3-phase surge protector — comparing only the headline kA number without checking the test waveform behind it.
| Parameter | SPD Type | Test Waveform | What It Measures |
|---|---|---|---|
| In (Nominal discharge current) | Type 2 | 8/20μs | Standard surge handling — 15 repetitions required |
| Imax (Maximum discharge current) | Type 2 | 8/20μs | Single maximum surge — SPD must survive (typically 2× In) |
| Iimp (Impulse current) | Type 1 | 10/350μs | Partial lightning current — ~50× the energy of 8/20μs at same peak |
Critical: the 10/350μs waveform carries roughly 50× the energy of an 8/20μs waveform at the same peak current. A 3-phase surge protector rated at 25kA using 8/20μs is not comparable to one rated at 25kA Iimp using 10/350μs. This distinction is frequently misrepresented in low-cost product datasheets. If the test waveform is not specified, assume the lower-energy figure.
Recommended minimums for industrial three-phase applications: Type 1: Iimp ≥ 25kA per phase. Type 2: In ≥ 40kA, Imax ≥ 80kA per phase. High-exposure or high-value assets: In ≥ 60–80kA. For full standard details, see our IEC 61643-11 standards guide.
Factor 4: Voltage Protection Level (Up)
Up is the maximum voltage a 3-phase surge protector allows through to protected equipment during a surge event — measured at the SPD terminals during the In test. Lower Up = better protection for connected equipment. Per IEC 60664-1, equipment is rated by overvoltage category, each with a defined impulse withstand voltage (Uw):
| Equipment Category | Uw (400V system) | Maximum Acceptable Up | Typical Equipment |
|---|---|---|---|
| Category IV (service entrance) | 6kV | ≤ 4.0kV | Meters, main switchgear |
| Category III (distribution, MCC) | 4kV | ≤ 2.5kV | Distribution boards, MCCs |
| Category II (appliances, drives) | 2.5kV | ≤ 1.5kV | Motors, VFDs, HVAC |
| Category I (sensitive electronics, PLCs) | 1.5kV | ≤ 1.0kV | PLCs, instrumentation, IT equipment |
EPRI testing (1007577, 2002) recommends surge protection with clamping below 2kV at the service entrance to prevent damage to most industrial PLC and adjustable-speed drive systems. For sensitive instrumentation, Type 3 SPDs with Up ≤ 1.0kV at the equipment terminal are required.
Lead length adds voltage: Up is measured at the SPD terminals. Every additional meter of connection lead between the SPD and the busbar adds approximately 1kV of inductive voltage at a 1kA/μs surge rise rate. Keep total lead length under 0.5m per conductor.
Factor 5: System Configuration and Earthing Type
A 3-phase surge protector must match your grid earthing system. The protection topology — which paths are protected — changes depending on whether you're on TN-S, TN-C-S, or TT:
| System Type | Common Regions | SPD Protection Modes Required | TOV Severity |
|---|---|---|---|
| TN-S | Europe, Asia | L1/L2/L3-N, L1/L2/L3-PE | Moderate |
| TN-C-S | UK, older EU installations | L1/L2/L3-PEN (upstream), then split | Moderate |
| TT | France, rural areas, some Asia | L1/L2/L3-N, N-PE separately | Higher — stricter TOV test |
| IT | Norway, medical, some industrial | L-L only, no direct N-PE path | Specific requirements |
IEC 61643-11 Annex B, Table B.1 specifies different TOV test levels for TN and TT systems. TT systems require SPDs to withstand higher and longer-duration temporary overvoltages — caused by high-voltage/medium-voltage faults propagating through distribution transformers. An SPD tested only for TN-S will fail the TT-system TOV test sequence. Confirm your system earthing type before finalizing specifications.
Factor 6: Backup Protection Coordination (SCPD)
Every 3-phase surge protector must be protected by a dedicated overcurrent device — a Surge Current Protective Device (SCPD) — upstream of the SPD. This is a code requirement under IEC 60364-5-53, not an option. The SCPD must carry full surge current without operating during a surge event, and interrupt fault current if the SPD fails short-circuit.
| SPD Type | Recommended SCPD | Notes |
|---|---|---|
| Type 1 (Iimp ≥ 25kA) | 125A gG fuse or 125A MCB | Verify ISCCR against panel fault level |
| Type 2 (In ≥ 40kA) | 63–100A gG fuse or MCB | Dedicated circuit, not shared with loads |
| Type 2 (In ≥ 80kA) | 125A gG fuse | Higher rating required for larger devices |
| Type 3 | 25–32A | Close-coupled to equipment |
For a detailed explanation of how SPDs and circuit breakers interact, see our circuit breaker vs surge protector coordination guide.
Complete 3-Phase Surge Protector Specifications Checklist
Use this before finalizing any purchase order for a 3-phase surge protector:
| Parameter | What to Verify | Minimum Requirement |
|---|---|---|
| Uc (L-N) | ≥ highest expected L-N service voltage | ≥ 275V (400V TN-S system) |
| Uc (L-L) | ≥ highest expected L-L voltage | ≥ 440V (400V system) |
| SPD Type | Match to installation zone (LPZ boundary) | Per IEC 62305-4 |
| In / Iimp | Confirm test waveform (8/20μs or 10/350μs) | In ≥ 40kA or Iimp ≥ 25kA |
| Up | Below equipment Uw with safety margin | ≤ 2.5kV (Cat III), ≤ 1.5kV (Cat II) |
| TOV withstand | Match to system earthing (TN or TT) | Per IEC 61643-11 Annex B |
| SCPD rating | Upstream overcurrent device specified | Per manufacturer coordination table |
| ISCCR | Short-circuit current rating ≥ available fault current | ≥ panel fault level |
| Protection modes | All required L-N, L-PE, N-PE paths | Match to system earthing type |
| Certification | IEC 61643-11 type test report from accredited lab | Third-party verification preferred |
| Status indication | Visual flag or remote dry-contact output | Recommended for industrial |
| Lead length | SPD terminal to busbar distance | ≤ 0.5m each conductor |
3-Phase Surge Protector Selection by Application

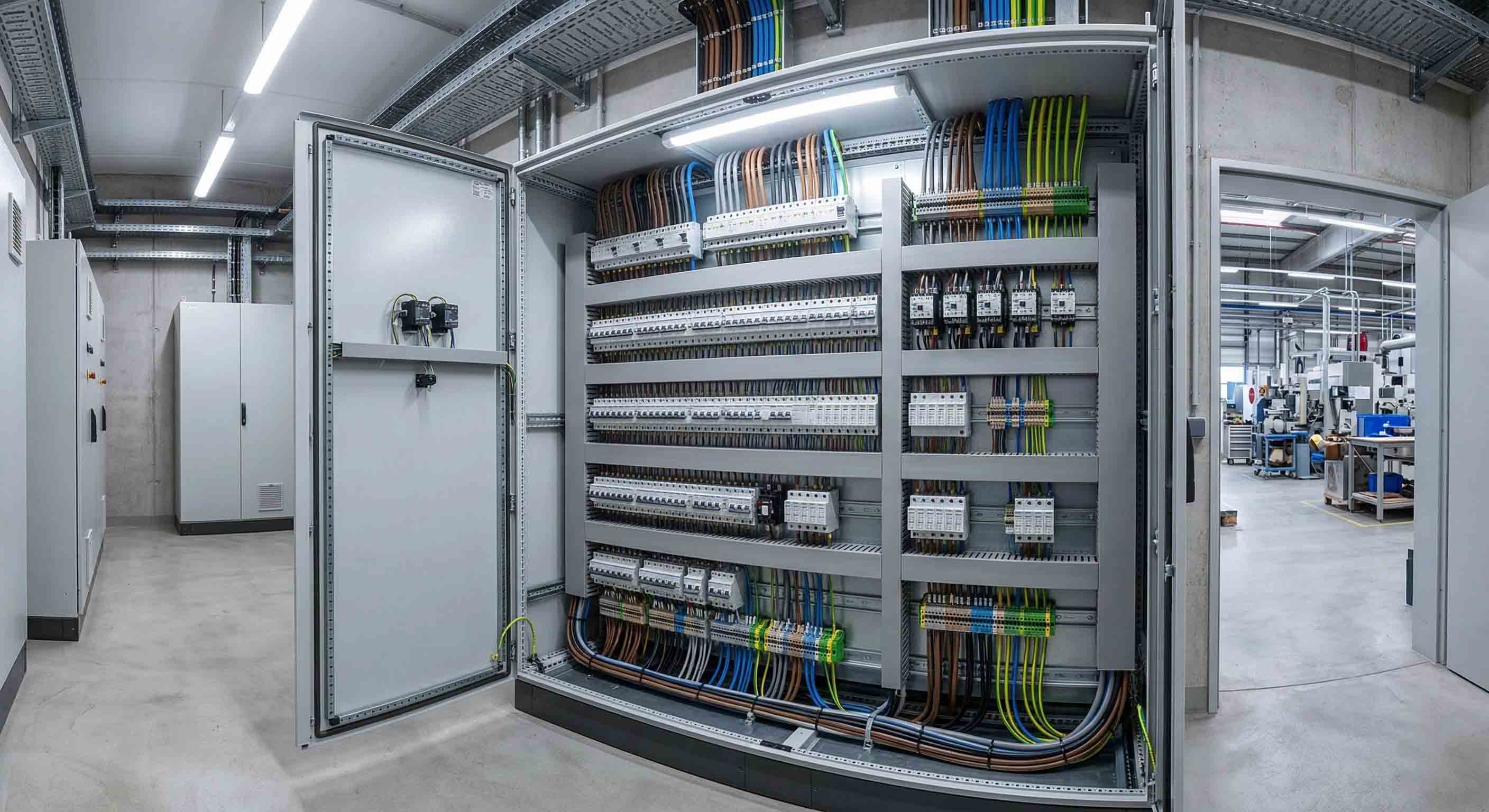

Industrial Facilities and Motor Control Centers
Factory environments combine high surge exposure — motor switching transients, capacitor bank switching, nearby lightning — with extremely sensitive and expensive control equipment. EPRI testing confirmed permanent damage to PLC and ASD systems at surge levels between 1kV and 6kV. According to IEEE PES research, 28% of premature industrial electronics failures trace back to surge overvoltage events — making a correctly specified 3-phase surge protector the single highest-yield protective investment in any MCC room.
Recommended configuration:
- Service entrance: Type 1+2, Iimp ≥ 25kA, In ≥ 40kA, Up ≤ 2.5kV
- MCC sub-panel: Type 2, In ≥ 40kA, Up ≤ 2.5kV
- PLC cabinet: Type 3, In ≥ 5kA, Up ≤ 1.0kV
TrilPeak products for industrial MCC applications:
- TrilPeak Type 1+2 SPD — DIN rail, Iimp 25kA, In 40–80kA, Up ≤ 2.5kV, IEC 61643-11 certified
- TrilPeak Type 2 SPD — Sub-distribution, In 40–80kA, remote alarm contact output
A complete surge protection strategy for industrial facilities requires coordinating all three protection levels. For a panel-by-panel review of your installation, contact our engineering team — send your single-line diagram and we'll confirm the correct type and rating for each board. See also our industrial surge protector guide for detailed application coverage.
Commercial Buildings and Data Centers
Commercial buildings face a different risk profile: lower direct lightning exposure, but high sensitivity to power quality events and the financial cost of downtime. The EPRI/Primen survey of 985 U.S. facilities (Report 1006274, 2001) recorded an average outage cost of $7,795 per hour for industrial and digital-economy establishments — a figure that makes the cost of a properly specified 3-phase surge protector system effectively irrelevant against the risk.
Recommended configuration:
- Main distribution board: Type 2, In ≥ 40kA, Up ≤ 2.5kV
- IT room / server room: Type 2 + Type 3 cascade, Up ≤ 1.5kV at equipment level
TrilPeak products for commercial and data center applications:
- TrilPeak 3-Phase Type 2 SPD — In 40–80kA, Up ≤ 1.5kV, remote alarm contact output available
- TrilPeak Network SPD — Ethernet and signal line protection for server rooms
For data center applications, Up ≤ 1.5kV at the equipment level is the practical target — not just at the service entrance. See our data center surge protection guide for a complete zone-by-zone architecture.
Solar PV Systems (3-Phase Inverter AC Side)
The AC output of a three-phase inverter requires a 3-phase surge protector (Type 2) between the inverter output terminals and the grid connection point. This is distinct from DC-side string protection and is frequently omitted from PV system BOM reviews. Inverter disconnection during a grid fault can produce sustained overvoltages on the AC side — making TOV withstand a critical specification parameter for this application.
Recommended configuration:
- Inverter AC output: Type 2, In ≥ 40kA, Up ≤ 2.5kV, Uc ≥ 385V
- High-exposure sites (high Ng, external LPS present): Type 1+2 at inverter AC output
TrilPeak products for solar AC-side applications:
- TrilPeak AC Surge Protector — Three-phase, In 40–80kA, IEC 61643-11 certified
- TrilPeak Type 1+2 SPD — For high-exposure solar sites with external LPS
For DC-side string and combiner box protection, see our solar surge protection guide.
5 Costly 3-Phase Surge Protector Specification Mistakes
These five errors account for the majority of 3-phase surge protector failures in industrial and commercial installations — and every one of them happens at the specification stage, not during installation.
Mistake 1 — Selecting Uc equal to nominal voltage. Grid voltage fluctuates within EN 50160 tolerance bands. An SPD with Uc = 230V on a 230V nominal TN-S system is operating at its thermal limit during normal grid conditions. Add a temporary overvoltage event and the MOV fails from heat — not from surge duty. Select Uc with a minimum 10–15% margin above highest expected service voltage.
Mistake 2 — Comparing In ratings without checking the test waveform. A 40kA rating under 8/20μs is not equivalent to 40kA under 10/350μs. The energy content is approximately 50× higher in the 10/350μs waveform. Vendors who do not specify the waveform in the datasheet are quoting the lower-energy figure.
Mistake 3 — Ignoring TOV requirements for TT systems. TT-system installations require SPDs to pass a more severe TOV test sequence per IEC 61643-11 Annex B. An SPD tested only for TN systems may fail in service on a TT grid — and the failure mode is thermal runaway, not a safe disconnect.
Mistake 4 — Installing Type 1 and Type 2 too close without coordination. Without adequate cable separation, the two devices compete rather than coordinate — the downstream Type 2 may absorb the surge before the upstream Type 1 responds. Use a Type 1+2 combined device if space is constrained.
Mistake 5 — Omitting the backup SCPD. A 3-phase surge protector without a correctly rated upstream overcurrent device is a code violation under IEC 60364-5-53 and a fire risk. When the SPD fails short-circuit, the fault current must be interrupted by a dedicated device — not the main panel breaker.
Certifications to Verify Before Purchasing a 3-Phase Surge Protector
Not all certifications carry equal weight for industrial procurement. These are the ones that matter for a 3-phase surge protector:
| Certification | Issuing Body | What It Confirms | Weight for Procurement |
|---|---|---|---|
| IEC 61643-11 type test report | Accredited national laboratory | Full performance testing per the standard | Essential — request the actual test report |
| CE Declaration of Conformity | Manufacturer self-declaration | EU market compliance | Required — verify supporting test reports exist |
| CB Certificate | IECEE mutual recognition network | IEC compliance recognized in 50+ countries | Strong for international procurement |
| ISO 9001:2015 | Third-party auditor | Manufacturing quality management system | Confirms process consistency, not product performance |
| SAA | Standards Australia | Australian market compliance | Required for Australian projects |
CE alone is not sufficient for technically demanding procurement. Request the underlying IEC 61643-11 type test report from an accredited laboratory — not just the Declaration of Conformity — before approving any supplier. A CE mark is a self-declaration; the test report is the technical evidence behind it.
TrilPeak's 3-phase surge protectors are certified to IEC 61643-11 with full type test reports from nationally accredited lightning protection laboratories, supported by CE, CB, SAA, and ISO 9001:2015. Every unit shipped passes 100% routine testing — not batch sampling. TrilPeak manufactures its own MOV chips in-house, ensuring batch-to-batch V₁ₘₐ consistency that third-party MOV procurement cannot guarantee.
Frequently Asked Questions About 3-Phase Surge Protectors
A single-phase SPD protects one line-to-neutral path. A 3-phase surge protector protects all three phase conductors simultaneously — L1, L2, L3 — plus the neutral and PE paths in a coordinated single device. They cannot substitute for each other. Installing three single-phase SPDs in a three-phase system does not provide phase-to-phase surge protection and creates coordination problems between units.
Yes, if the building has no external lightning protection system and is not in a high-lightning-exposure zone. Where an LPS exists, or where overhead supply lines bring direct lightning current exposure into the installation, IEC 62305-4 requires a Type 1 (or Type 1+2) at the LPZ 0/1 boundary — the service entrance. Omitting it in that scenario transfers the full impulse current stress to the Type 2 device, which is not tested for 10/350μs waveforms and will fail under that load.
For L-N protection modes: minimum Uc ≥ 275V (typically select 275V or 320V). For L-L protection modes: minimum Uc ≥ 440V. IEC 61643-11 requires Uc to exceed the highest expected service voltage. A 400V nominal system can legally operate up to 440V under EN 50160 voltage tolerance limits — so Uc must accommodate this full operating range, not just the nameplate voltage.
It depends on the model topology. A 4-pole 3P+N SPD protects all three phases and neutral independently. Some 3-pole models protect only L1/L2/L3 without a dedicated N-PE protection path. Verify the protection topology in the datasheet — for TN-S and TT systems, N-PE protection is required. This is a frequently overlooked specification point when comparing products by price alone.
Most quality SPDs include a visual status indicator (flag or LED) that changes state after the MOV has absorbed sufficient surge energy to degrade. For critical applications, specify an SPD with a remote alarm dry contact — this allows integration into BMS or SCADA systems for automatic fault notification. See our full guide on when to replace a surge protector. Never continue operating with a faulted SPD in circuit — it provides zero protection and may be a fire risk.
Both are rated under the 8/20μs waveform. In is the nominal discharge current — the SPD must withstand 15 repetitions at this level without degradation. Imax is the maximum single-event current — the SPD must survive one event at Imax, though some degradation is permitted. Imax is typically 2× In. Neither parameter is comparable to Iimp (10/350μs), which is the Type 1 parameter representing true partial lightning current — a fundamentally different and far more energetic waveform.
At minimum, one at each protection zone boundary: service entrance (Type 1 or Type 1+2) and each sub-distribution panel (Type 2). For facilities with sensitive electronics, add Type 3 devices at equipment level. The number of Type 2 units equals the number of sub-distribution boards in your installation. If you have a single-line diagram, send it to our engineering team and we'll map the complete SPD placement for your system.
Yes. The SPD's short-circuit current rating (ISCCR) must equal or exceed the available fault current at the installation point. An SPD with ISCCR of 25kA installed at a 50kA fault current point will fail destructively — not safely — when the MOV fails short-circuit. Always confirm ISCCR against your panel fault level study before finalizing the specification.
Conclusion: Get These 6 Parameters Right
3-phase surge protector selection comes down to six parameters: Uc with adequate margin, SPD type matched to the LPZ zone, discharge current with the correct waveform specified, Up matched to equipment overvoltage category, system earthing type (TN vs TT), and SCPD coordination. Get all six right and the SPD will perform as specified. Miss one — particularly Uc or TOV withstand — and the SPD becomes the weakest point in your system under exactly the conditions it's supposed to handle.
The IEEE and EPRI data is clear: 28% of premature industrial electronics failures trace back to surge overvoltage events, and the leading cause of SPD failure is not surge duty — it's misapplication during specification. A correctly specified 3-phase surge protector costs a fraction of one hour of industrial downtime.
Explore TrilPeak's IEC-certified range: 3-Phase Type 2 SPD · Type 1+2 Combined SPD · Full SPD product range
Send us your panel single-line diagram and system earthing type — our engineers will confirm the correct SPD type, Uc, In, and SCPD rating for each installation point within 24 hours.
