Surge Protector Clamping Voltage: Best 4-Parameter Guide

SPD Key Parameters Explained: Surge Protector Clamping Voltage, MCOV, In/Imax & Response Time

Quick Answer: What Is Surge Protector Clamping Voltage?

Surge protector clamping voltage — formally called the voltage protection level (Up) under IEC 61643-11 — is the maximum voltage that appears across the SPD terminals during a surge test at the nominal discharge current (In). It represents the highest residual voltage your equipment will see when the SPD activates. A lower clamping voltage means better protection, but selecting it correctly requires matching Up to four other parameters: Uc (MCOV), In, Imax, and response time. This guide explains all four in plain engineering terms, with IEC references and a selection table.

When you open an industrial SPD datasheet, you see a table of abbreviations: Up, Uc, In, Imax, Iimp, response time. Most datasheets define these parameters but do not explain how to select them — or what goes wrong when they are wrong.

This guide covers the four parameters that matter most for industrial SPD selection: surge protector clamping voltage (Up), maximum continuous operating voltage (Uc / MCOV), discharge current ratings (In and Imax), and response time. Understanding surge protector clamping voltage is the starting point — but it only makes sense alongside the other three. Each section follows IEC 61643-11 definitions, explains the selection logic, and flags the most common specification mistakes in industrial installations.

If you are troubleshooting an SPD that keeps tripping or failing prematurely, a misspecified parameter is often the root cause. See our surge protector troubleshooting guide for fault diagnosis. For a broader explanation of how SPDs work, see how a surge protection device works.

What Is Clamping Voltage on a Surge Protector? (Up / Voltage Protection Level)

Surge protector clamping voltage is the parameter that defines how well the SPD actually protects your equipment. It is not the voltage at which the SPD starts to conduct — it is the peak residual voltage measured across the SPD terminals during a standardised surge test. A lower surge protector clamping voltage means less voltage reaches the protected equipment during a surge event.

IEC Definition and How It Is Measured

Under IEC 61643-11, the voltage protection level Up is defined as the maximum voltage appearing across SPD terminals under specified impulse test conditions. For Type 2 SPDs, Up is measured by applying an 8/20 µs current impulse at the nominal discharge current In and recording the peak voltage across the device. The result is the declared Up value — the worst-case surge protector clamping voltage the SPD will deliver under those test conditions.

The 8/20 µs waveform (8 microseconds rise time, 20 microseconds to half-peak) represents the induced switching surge typical of industrial environments. It is not the same as a direct lightning current waveform — that uses a 10/350 µs waveform and is the basis for Type 1 SPD testing.

How to Match Clamping Voltage to Your Equipment

The fundamental rule: the surge protector clamping voltage (Up) must be lower than the impulse withstand voltage (Uw) of the equipment being protected, with adequate margin.

IEC 60664-1 defines four overvoltage categories for equipment. The impulse withstand voltages for a 230/400 V system are:

Overvoltage Category	Typical Equipment	Impulse Withstand (Uw) at 230 V	Required SPD Up
Category IV	Service entrance equipment, meters, main switchgear	6 kV	≤ 4 kV (Type 1 SPD)
Category III	Distribution panels, industrial switchgear, motors	4 kV	≤ 2.5 kV (Type 1+2 SPD)
Category II	PLCs, drives, sensors, IT equipment, appliances	2.5 kV	≤ 1.5 kV (Type 2 SPD)
Category I	Sensitive electronics, protected circuits	1.5 kV	≤ 1.0 kV (Type 3 SPD)

For most industrial installations protecting PLCs, drives, and instruments (Category II), a Type 2 SPD with Up ≤ 1.5 kV at the distribution board, supplemented by a Type 3 SPD with Up ≤ 1.0 kV at the equipment cabinet, provides a correctly graded protection system.

Typical Clamping Voltage Values by SPD Type

Approximate Up ranges for 230/400 V systems, based on IEC 61643-11 compliant products from major manufacturers:

Type 1 SPDs (service entrance, lightning current rated): Up typically ≤ 2.5 kV, sometimes up to 4 kV for high-energy spark-gap designs
Type 2 SPDs (distribution boards, subdistribution): Up typically 1.0–1.5 kV on 230/400 V systems
Type 3 SPDs (point-of-use, equipment cabinets): Up typically 600 V–1.0 kV for sensitive electronics

These values scale with system voltage. For 480 V systems, Up values are proportionally higher. Always refer to the manufacturer's datasheet for the actual declared Up at the specific In rating.

Why Lower Clamping Voltage Is Better — and the Trade-Offs

A lower surge protector clamping voltage reduces the residual overvoltage reaching the equipment, improving protection margin and reducing long-term dielectric stress on insulation and components.

However, pushing Up too low introduces real engineering trade-offs that matter in industrial applications:

Higher leakage current and capacitance. An SPD with a very low clamping voltage starts conducting at lower voltages, increasing continuous leakage current. This can cause RCD nuisance tripping, increase standby power losses, and create EMC interference on sensitive circuits.
Increased stress on the SPD itself. A lower Up means the MOV begins to conduct earlier and absorbs more energy per surge event, accelerating degradation — particularly in environments with frequent switching transients.
Cascade coordination problems. If a downstream Type 2 SPD has a lower Up than the upstream Type 1 device, it may fire first and absorb disproportionate energy, shortening its life. Correct cascading requires each downstream stage to have progressively lower Up, separated by adequate cable inductance.

The practical approach: select the lowest Up that satisfies the equipment Uw requirement while maintaining Uc ≥ 1.1 × Un (covered in the next section). Do not chase the lowest available Up number without checking leakage, coordination, and thermal stability.

What About 330 V Clamping Voltage?

Consumer surge protectors commonly advertise a "330 V clamping voltage" — a value that appears in UL 1449 (North American standard) as the best achievable VPR (Voltage Protection Rating) at 120 V AC. This figure is specific to 120 V systems and is not directly comparable to IEC Up values for 230 V or 400 V industrial systems.

For industrial 230/400 V installations governed by IEC 61643-11, the relevant parameter is Up — and a typical Type 2 SPD Up of 1.0–1.5 kV on a 230 V system provides equivalent protection margin to a 330 V UL device on a 120 V system. Do not specify "330 V clamping voltage" in B2B industrial procurement documents — specify Up in kV per IEC 61643-11.

MCOV / Uc — Maximum Continuous Operating Voltage

Uc is the parameter engineers most frequently undersize — and a wrong Uc is the single most common cause of an SPD running hot, tripping prematurely, or failing within months of installation.

IEC Definition (Uc) vs North American Definition (MCOV)

Under IEC 61643-11, Uc (maximum continuous operating voltage) is the maximum RMS voltage that may be continuously applied to the SPD terminals in the absence of surge activity. It is not the operating voltage of the SPD — it is the upper limit the SPD can withstand continuously without conducting and self-heating.

North American standard UL 1449 uses the equivalent term MCOV surge protector rating (Maximum Continuous Operating Voltage) with the same fundamental meaning. If you see MCOV on a datasheet, it is the UL equivalent of IEC Uc. The MCOV surge protector value and IEC Uc serve the same purpose — defining the steady-state voltage limit — but the test methods and marking conventions differ between standards. For the full IEC installation framework governing SPD selection, see IEC 60364-5-53 on the IEC website.

The Uc ≥ 1.1 × Un Selection Rule

The standard rule for selecting Uc on a 230/400 V TN or TT system is:

Uc ≥ 1.1 × Un (phase-to-neutral voltage)

For a 230 V phase-to-neutral system: Uc ≥ 1.1 × 230 V = 253 V. In practice, manufacturers round up to standard Uc values — 275 V AC is the most common selection for L-N or L-PE modes on 230 V TN systems.

The 1.1 factor accounts for the +10% supply voltage tolerance permitted under EN 50160, plus harmonics and minor overvoltages that are part of normal network operation. Selecting Uc exactly at Un — for example specifying a 230 V Uc device on a 230 V system — means the SPD will conduct continuously under normal supply conditions, overheating and failing within months.

For N-PE modes in TT systems, Uc must be significantly higher — often 255–440 V — to tolerate the temporary overvoltages that occur during neutral faults and earth fault conditions. Always follow the manufacturer's earthing-system-specific selection table rather than applying the 1.1 × Un rule uniformly to all modes.

Consequences of Undersizing Uc

An undersized Uc — one too close to the actual operating voltage — causes the SPD to conduct excessive leakage current under normal mains conditions. The consequences escalate:

Increased self-heating. Continuous leakage current generates heat inside the MOV. The thermal disconnector responds to rising temperature — if Uc is undersized, the disconnector operates prematurely, triggering an apparent end-of-life with no actual surge event.
Thermal runaway risk. IEC 61643-11 includes specific temporary overvoltage (TOV) tests because undersized-Uc SPDs are vulnerable to thermal runaway during network overvoltage events, which can cause fire if the upstream SCPD coordination is inadequate.
Nuisance MCB tripping. The elevated leakage from an undersized Uc SPD can trip sensitive RCDs or cause a surge protector tripping breaker fault that appears to be SPD end-of-life but is actually a specification error.

Most common Uc mistake: Specifying a Uc of 230 V or 240 V for a 230 V system, reasoning that it "matches the system voltage." This is wrong. Uc must be above the highest voltage that will normally appear on the line — including tolerances, harmonics, and temporary overvoltages. The correct minimum for L-N on a 230 V TN system is 275 V AC.

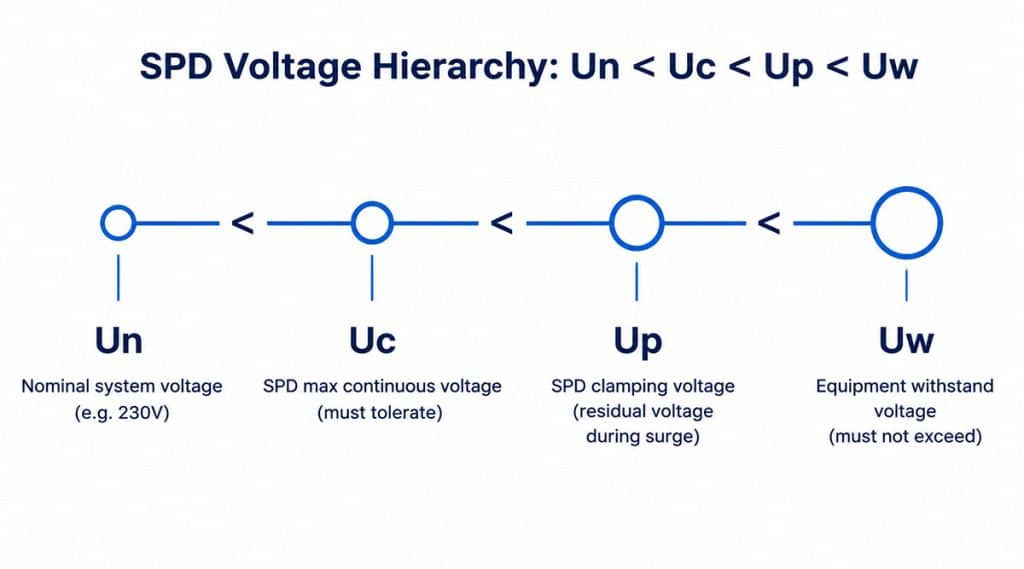

The Voltage Hierarchy: Un → Uc → Up → Uw

Understanding the relationship between these four voltages is fundamental to correct SPD selection:

Un — nominal system voltage (e.g. 230 V). The reference voltage defined in IEC 60038.
Uc — maximum continuous operating voltage of the SPD. Must be ≥ 1.1 × Un. This is what the SPD tolerates continuously.
Up — voltage protection level (clamping voltage). The residual voltage during a surge. Must be below Uw of protected equipment.
Uw — impulse withstand voltage of the protected equipment. Defined by overvoltage category per IEC 60664-1.

The correct hierarchy is: Un < Uc < Up < Uw. If any of these relationships is violated, the SPD either fails prematurely (Uc too low) or fails to protect (Up too high relative to Uw).

In and Imax — Nominal and Maximum Discharge Current

In and Imax define how much surge current the SPD can handle — the energy dimension of surge protection that the clamping voltage parameter alone does not capture.

IEC 61643-11 Definitions

Nominal discharge current (In) is the crest value of an 8/20 µs surge current that the SPD must withstand for 15 consecutive impulses without unacceptable change of characteristics. It is the repeatability rating — the current the device handles reliably under repeated surge conditions typical of service.

Maximum discharge current (Imax) is the crest value of a single 8/20 µs surge current that the SPD can withstand once without damage. Imax is always ≥ In and represents the single-event survival limit. After a surge at Imax, the SPD may still function but its characteristics may have shifted — it should be inspected and replaced proactively.

Both In and Imax apply to Type 2 SPDs. They use the 8/20 µs waveform representing induced surges and switching transients.

Iimp for Type 1 SPDs: A Different Parameter Entirely

Type 1 SPDs — installed at service entrances where direct lightning current can flow — are characterised by Iimp (impulse current), not In. Iimp uses the 10/350 µs waveform, which has far higher energy content than an 8/20 µs impulse of the same peak value. A 10/350 µs waveform at 12.5 kA carries roughly 25 times more energy than an 8/20 µs waveform at the same peak.

This means: you cannot compare In (8/20 µs) directly with Iimp (10/350 µs). A Type 2 SPD rated In = 40 kA (8/20 µs) is not equivalent to a Type 1 SPD rated Iimp = 40 kA (10/350 µs). The Type 1 device handles far more energy. When reviewing SPD datasheets, always check which waveform the current rating applies to.

How to Select In and Imax for Your Installation

The appropriate In and Imax depend on the installation's lightning exposure, position in the distribution system, and whether an external lightning protection system (LPS) is present. IEC 62305-2 risk assessment methodology provides the formal basis; the following table gives practical guidance aligned with IEC 60364-5-53 and typical manufacturer selection tools:

Installation Type	SPD Type	Minimum In (8/20 µs)	Minimum Imax (8/20 µs)	Notes
Residential / small commercial, low lightning exposure	Type 2 at service entrance	5 kA	20 kA	No external LPS, urban location, overhead lines not nearby
Light industrial, office, urban built-up area	Type 2 at main distribution	20 kA	40 kA	Standard recommendation for industrial distribution boards
Industrial with external LPS or overhead line entry	Type 1+2 at service entrance	Iimp ≥ 12.5 kA (10/350 µs)	Imax ≥ 50 kA (8/20 µs)	Combined Type 1+2 covers both lightning and switching surges
Heavy industrial, high lightning exposure, LPL I/II	Type 1 at service entrance	Iimp ≥ 25 kA (10/350 µs)	Imax ≥ 100 kA (8/20 µs)	Exposed rural sites, substations, tall structures
Sub-distribution / secondary panels	Type 2	10–20 kA	40 kA	Surge energy already partially absorbed by upstream Type 1/2
Point-of-use / equipment cabinets	Type 3	3–5 kA	10–20 kA	Fine clamping only — must be used with upstream Type 2

For precise In/Iimp selection, refer to IEC 62305-2 risk assessment or use the manufacturer's selection tool. The values above represent typical guidance — specific site conditions may require higher ratings, particularly in high-lightning-density regions.

SPD Response Time

Surge protector response time is the time elapsed between the application of an overvoltage and the point at which the SPD begins effective clamping. It is measured in nanoseconds and is a function of the protection technology — MOV, TVS diode, or GDT — rather than a parameter you typically specify independently.

Response Time by Protection Technology

Technology	Typical Response Time	Energy Handling	Best Used For
MOV (Metal Oxide Varistor)	Tens of nanoseconds (<100 ns)	High (In 5–100 kA)	Mains distribution SPDs, Type 1/2/3 power line protection
TVS Diode	Sub-nanosecond to a few ns	Low (typically <1 kA)	Signal line SPDs, data interface protection, Type 3/4 fine clamping
GDT / Spark Gap	Microseconds (statistical lag)	Very high (Iimp 25–100 kA)	Type 1 service entrance, lightning current diversion

MOV-based SPDs — the standard technology for industrial power line protection — have response times well within the limits needed for 8/20 µs and 10/350 µs surge waveforms. The surge front rises over microseconds; tens of nanoseconds of response time is more than adequate.

Does Faster Response Time Always Mean Better Protection?

No — and this is a common misunderstanding in SPD specification. Protection quality is determined by the combination of Up, Uc, In/Imax, coordination, and response time together, not by response time alone.

A TVS diode with sub-nanosecond response time has far lower energy handling than an MOV. If a high-energy surge hits a TVS-only device without an upstream MOV-based SPD absorbing the bulk of the energy, the TVS is destroyed on the first event — regardless of how fast it responded.

GDT-based Type 1 SPDs have microsecond-scale statistical response lag, but they handle Iimp ratings of 25–100 kA that would destroy any MOV or TVS. Their role in the protection cascade is energy diversion, not fast clamping — and the downstream Type 2 MOV SPD handles the residual clamping with adequate speed.

For mains distribution SPDs (Type 1 and Type 2), response time is rarely the binding constraint. Focus on Up, Uc, and In/Imax. Response time becomes a primary specification concern only for Type 3 signal-line and data-interface SPDs protecting circuits with nanosecond-sensitive electronics.

How to Read an SPD Datasheet: Complete Parameter Reference

When reading an industrial SPD datasheet, these are the parameters that matter for selection and what each one means in practice:

Parameter	IEC Symbol	What It Means	How to Select	Common Mistake
Clamping voltage / Voltage protection level	Up	Peak residual voltage at SPD terminals during surge at In. The surge protector clamping voltage.	Must be below equipment Uw (impulse withstand). For Cat II equipment: Up ≤ 1.5 kV at 230 V.	Selecting the lowest available Up without checking leakage and coordination consequences.
Max continuous operating voltage	Uc (IEC) / MCOV (UL)	Maximum RMS voltage SPD tolerates continuously without conducting.	Uc ≥ 1.1 × Un. For 230 V system: Uc ≥ 275 V AC. Check N-PE mode separately.	Setting Uc = Un (e.g. 230 V for a 230 V system) — causes continuous conduction and premature failure.
Nominal discharge current	In	8/20 µs surge current the SPD handles 15 times without degradation.	≥ 20 kA for industrial distribution. Higher for sites with LPS or overhead lines.	Confusing In (8/20 µs) with Iimp (10/350 µs) — they are not comparable.
Maximum discharge current	Imax	Single 8/20 µs surge current the SPD survives once without destruction.	≥ 40 kA for industrial. Inspect and replace proactively after a surge at Imax.	Treating Imax as a safe repeat-operation rating — it is a one-time survival limit.
Impulse current (Type 1 only)	Iimp	10/350 µs lightning current the Type 1 SPD handles. High energy content.	≥ 12.5 kA for installations with external LPS. ≥ 25 kA for LPL I/II.	Specifying a Type 2 SPD (In-rated) where a Type 1 (Iimp-rated) is required by IEC 62305 risk assessment.
Short-circuit current rating	Isccr	Maximum prospective short-circuit current the SPD can withstand safely with its specified SCPD.	Must be ≥ prospective fault current at the installation point.	Installing at a panel with higher fault current than Isccr — creates fire risk on SPD failure.
Response time	—	Time from surge application to effective clamping onset.	MOV: <100 ns — adequate for all power line surges. Critical only for signal/data line SPDs.	Over-specifying response time for power SPDs at the expense of energy handling.

4 Common SPD Selection Mistakes

These are the four most frequent parameter errors found during industrial SPD audits and panel inspections:

Mistake 1: Uc Equal to System Voltage

Specifying a Uc of 230 V for a 230 V network is the most common single cause of premature SPD failure. The SPD conducts continuous leakage current at normal mains voltage, overheats, and triggers its thermal disconnector — appearing to have "failed" when it was simply misspecified. Always select Uc ≥ 275 V AC for L-N on a 230 V TN system.

Mistake 2: Confusing Clamping Voltage with Turn-On Voltage

The surge protector clamping voltage (Up) is not the voltage at which the MOV starts to conduct — it is the peak residual voltage measured during an 8/20 µs impulse at In. These are different values. The varistor voltage (V1mA) is a manufacturing parameter; Up is a system protection parameter. Specify Up per IEC 61643-11 and let the manufacturer design the varistor accordingly.

Mistake 3: Using In Where Iimp Is Required

Installing a Type 2 SPD rated only by In (8/20 µs) at a service entrance where IEC 62305 risk assessment requires Iimp (10/350 µs) leaves the installation vulnerable to direct lightning current. A Type 2 SPD hit by a partial lightning current waveform will be destroyed on the first event. If the site has an external LPS, overhead line entry, or is in a high-lightning-density area, verify whether a Type 1 or Type 1+2 device is required. See our Type 1 vs Type 2 vs Type 3 SPD guide for the full classification framework.

Mistake 4: Ignoring Isccr at High Fault-Current Locations

Every SPD has a short-circuit current rating (Isccr) — the maximum fault current it can handle safely when it fails short-circuit. If the prospective short-circuit current at the installation point exceeds Isccr, a shorted SPD can cause a violent fault before the upstream SCPD clears it. Always verify Isccr against the available fault current, particularly in main distribution boards close to the supply transformer. See our circuit breaker and SPD coordination guide for SCPD selection details.

Not Sure Which SPD Parameters Apply to Your Installation?

TrilPeak's engineering team can review your system voltage, earthing configuration, lightning exposure zone, and equipment overvoltage category — and confirm the correct Up, Uc, In, and Imax values for your project. Free of charge for B2B enquiries.

Get Free Engineering Support View SPD Product Range

Frequently Asked Questions

What is a good clamping voltage for a surge protector?

For industrial installations, "good" depends on the equipment overvoltage category. For Category II equipment (PLCs, drives, instruments, IT equipment) on a 230 V system, a surge protector clamping voltage (Up) of ≤ 1.5 kV at the distribution board and ≤ 1.0 kV at the equipment cabinet is the standard IEC 61643-11 recommendation.

For North American 120 V systems using UL 1449, a VPR of 330 V (the lowest available class) is the best consumer-grade option for household electronics — but this figure is not directly comparable to IEC Up values and should not be used in industrial B2B specifications.

A lower clamping voltage is generally better for equipment protection, but selecting it too low increases leakage current, can trip RCDs, and accelerates MOV degradation. The correct value balances protection margin against Uc, leakage, and coordination constraints.

What is the difference between clamping voltage and MCOV?

Surge protector clamping voltage (Up in IEC, VPR in UL) and MCOV (Uc in IEC) are two completely different parameters that are frequently confused.

Clamping voltage (Up/VPR) is the peak residual voltage during a surge event — what your equipment sees when the SPD fires. It is a protection performance parameter measured under impulse conditions.

MCOV / Uc is the maximum continuous RMS voltage the SPD tolerates without conducting under normal mains conditions. It is a steady-state thermal stability parameter, not a surge performance parameter.

A correctly specified SPD needs both: Uc ≥ 1.1 × Un (so it does not conduct continuously) and Up < Uw of the equipment (so it provides adequate protection when it does fire).

What does surge protector voltage rating mean?

The term "surge protector voltage rating" is ambiguous and can refer to several different parameters depending on context. In IEC-compliant industrial datasheets it typically means one of:

Uc — the maximum continuous operating voltage (what the SPD tolerates continuously). This is what most manufacturers mean by "voltage rating" in the context of system compatibility.

Up — the voltage protection level (clamping voltage). This is what defines the residual surge voltage reaching the equipment.

When specifying or comparing SPDs, always identify which parameter is being referenced. Uc governs continuous operation compatibility; Up governs surge protection performance. Both must be correctly matched to the installation.

What is varistor clamping voltage and how does it differ from SPD Up?

Varistor clamping voltage (often noted as V1mA or Vclamp on MOV component datasheets) is a component-level characteristic measured at a specific test current — typically 1 mA DC through the varistor. It indicates when the varistor begins to conduct significantly and is used in MOV design and circuit analysis.

SPD Up (voltage protection level) is a system-level parameter measured under the full 8/20 µs impulse test conditions specified by IEC 61643-11. It reflects the actual peak voltage during a realistic surge event — a much higher current than 1 mA — and is the only relevant figure for equipment protection assessment.

Varistor clamping voltage and SPD Up are related but not equal: Up is always higher than the varistor's low-current clamping point because the varistor's dynamic resistance adds voltage during the high-current surge transient. Use Up for system design; varistor clamping voltage is an internal design parameter for SPD manufacturers.

Does surge protector response time matter for industrial power line protection?

For industrial power line SPDs (Type 1 and Type 2), surge protector response time is rarely the binding constraint. MOV-based SPDs respond in tens of nanoseconds — well within the requirements of 8/20 µs and 10/350 µs surge waveforms, which rise over microseconds. No practically available surge on an industrial power line rises fast enough to defeat a correctly specified MOV-based SPD on response time grounds.

Response time becomes a critical specification concern for Type 3 signal-line and data-interface SPDs protecting sensitive electronics with nanosecond-sensitive circuits. In those applications, TVS diode-based devices with sub-nanosecond response provide meaningful improvement over MOV alternatives.

For power line SPDs, focus your specification on Up, Uc, In/Imax, and Isccr — these parameters determine real-world protection performance far more than the difference between a 10 ns and 100 ns response time.

Conclusion: SPD Parameter Selection Checklist

Correct surge protector clamping voltage specification requires all four parameters to be right simultaneously — a low Up with an undersized Uc will fail prematurely; a correct Uc with insufficient In will be destroyed on the first major surge. Use this checklist for every industrial SPD specification:

Up (clamping voltage): Must be below the impulse withstand voltage (Uw) of the protected equipment. For Category II equipment on 230 V: Up ≤ 1.5 kV at distribution board level.
Uc (MCOV): Must be ≥ 1.1 × Un. For 230 V TN system L-N mode: Uc ≥ 275 V AC. Never set Uc equal to system voltage.
In / Imax: Match to installation exposure level. Minimum In = 20 kA for industrial distribution. Check whether Iimp (10/350 µs, Type 1) is required by IEC 62305 risk assessment.
Isccr: Must be ≥ prospective fault current at the panel. Verify with the site's short-circuit study.
Response time: Not a primary concern for power line SPDs. Specify TVS-based devices only where sub-nanosecond response is genuinely required (signal/data lines).

For a complete guide to SPD types and their installation positions, see our Type 1 vs Type 2 vs Type 3 SPD comparison. For the governing standard, see the IEC 61643-11 standards guide. For industrial SPD products meeting these specifications, see the TrilPeak industrial surge protector range.
