Overview

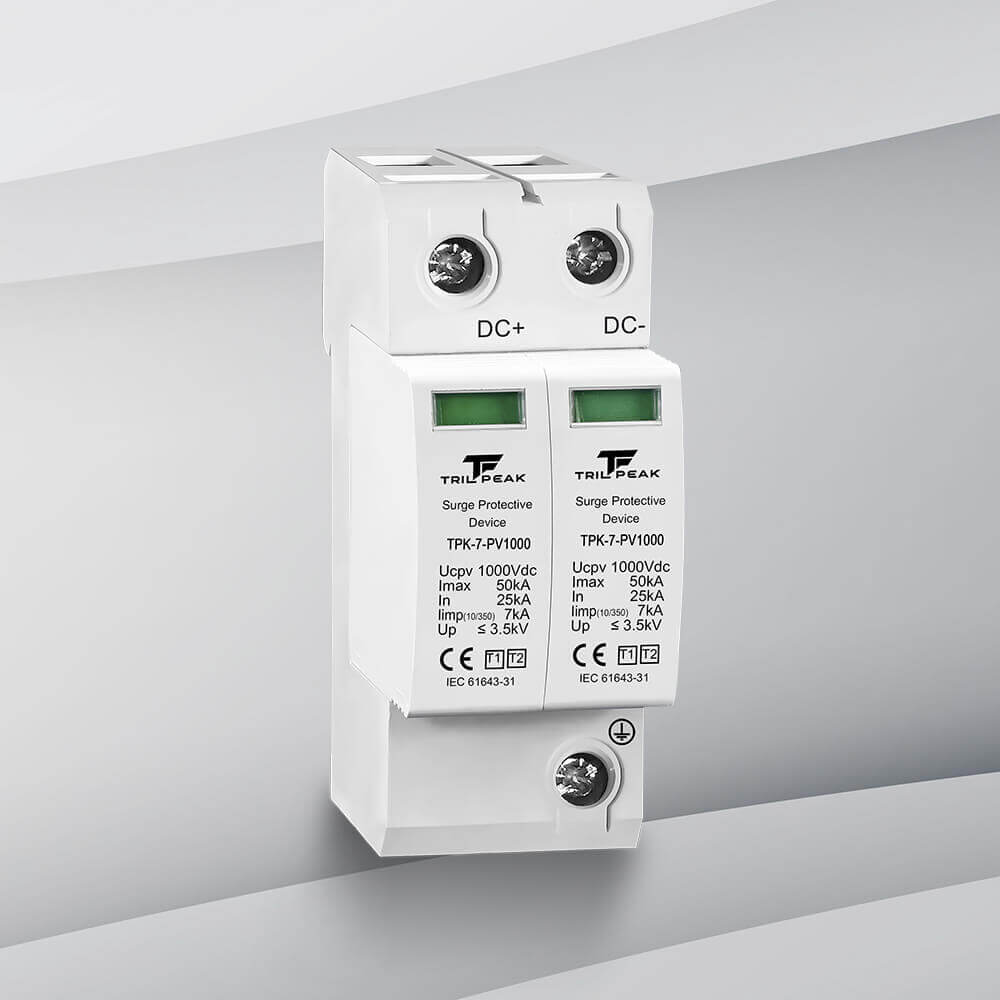

The TPK-7-PVxxx series is a Type 1+2/Class I+II DC surge protective device designed specifically for photovoltaic systems operating from 500 VDC to 1500 VDC. With built-in MOV technology, it safeguards the DC side of PV installations such as solar panels and inverters from lightning-induced overvoltages. Featuring full-mode protection (+/-/PE), compact DIN-rail design, and optional remote signaling, this SPD is ideal for both utility-scale solar farms and residential rooftop setups.

Key Features

■ Uc: 500 / 600 / 800 / 1000 / 1200 / 1500 VDC
■ Type 1+2, Class I+II protection
■ Iimp (10/350 μs): 7 kA
■ In (8/20 μs): 25 kA
■ Imax (8/20 μs): 50 kA
■ Voltage protection level (Up): ≤ 1.8 / 2.5 / 3.2 / 3.5 / 4.0 / 4.5 kV depending on Uc
■ Ultra-fast response time: < 25 ns
■ Full-mode protection: + to -, + to PE, – to PE
■ Thermal protection and status indication (Green = good, Red = replace)
■ Optional remote signaling (NO/NC, 3-pin)
■ DIN-rail mountable 35 mm, pluggable format
■ Enclosure: PA66, flame-retardant UL94 V-0, IP20 rated
■ Operating temperature: -40°C to +80°C
■ Altitude: up to 4000 m
■ Max conductor cross-section: 35 mm² (solid), 25 mm² (flexible)
