Overview

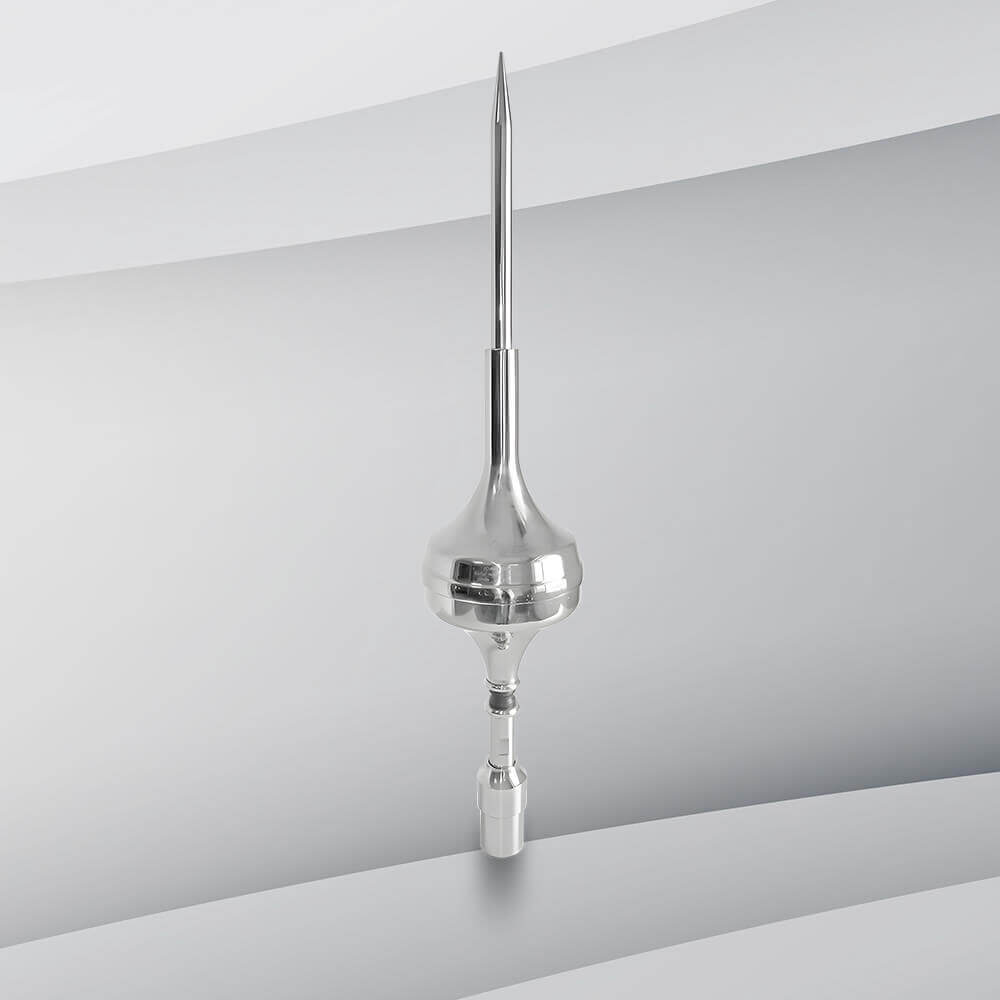

The TPKSE Series features Early Streamer Emission (ESE) lightning rods that proactively initiate upward leaders to capture lightning earlier than traditional rods.
Ideal for large-area protection, these passive, stainless steel devices require no power or maintenance, offering durable and reliable external lightning protection for a wide range of structures.
Key Features
Early Streamer Emission (ESE) technology for wider protection radius
Stainless steel 304 construction, corrosion-resistant
Maximum discharge current: 200 kA
No electrical components or power supply required
Guaranteed performance after multiple discharges
Maintenance-free passive design
Easy mast-top installation with adapter
Operates reliably under all weather conditions
Applications
Residential and commercial buildings
Towers and tall infrastructure
Open-area protection (parks, airports, etc.)
Industrial facilities and warehouses
Standards and Compliance
Compliant with IEC/EN 62305 and NF C 17-102
Installation: Tip ≥ 2 meters above protected structure
Grounding resistance <10 ohms recommended
External down conductor routing with shielding
