Surge Protector Tripping Breaker: 5-Step Diagnosis Guide for Industrial SPDs

A surge protector tripping breaker is one of the most disruptive faults in industrial electrical installations — and one of the most misdiagnosed. Engineers often reset the upstream MCB, see equipment running normally, and assume the problem is solved. It is not.

In most cases, the surge protector tripping breaker event means the SPD has reached end-of-life. Its internal protection element has disconnected, and the downstream equipment is now completely exposed to the next transient event.

This guide covers the three most common surge protector problems maintenance engineers encounter: a surge protector tripping breaker, an SPD status indicator or status window showing a fault, and hidden surge protector failure modes where the device passes current but no longer provides protection. Each section follows IEC 61643-11 and IEC 60364-5-53 requirements for SPD fault behaviour, status indication, and field inspection.

Why a Surge Protector Trips a Breaker

A correctly installed and sized surge protector does not trip the upstream circuit breaker under normal conditions. Surge currents are impulsive events lasting microseconds — too brief to trip a standard thermal-magnetic MCB if the backup protective device is correctly coordinated per IEC 60364-5-53, Clause 534.4.5.

When a surge protector tripping breaker event occurs, it almost always signals one of two distinct fault conditions — SPD end-of-life or short-circuit failure. Identifying which one determines the correct response.

SPD End-of-Life: The Most Common Cause

MOV-based surge protectors degrade with each absorbed surge event. Repeated surge currents — even below the SPD's rated nominal discharge current — gradually shift the varistor's voltage-current characteristic, increasing leakage current at normal mains voltage. As leakage rises, the MOV self-heats; internal temperature rises further reduce resistance, creating positive feedback that accelerates degradation. When this process reaches a threshold, the SPD's internal thermal disconnector activates and mechanically disconnects the MOV from the circuit.

In a well-designed SPD, this thermal disconnection is the safe end-of-life sequence: the protection path opens, the status window changes to red (on mechanical-flag designs) or the LED status indicator extinguishes, and the upstream MCB may or may not trip depending on the energy involved and the backup device rating.

If the thermal disconnector operates while the MOV is still in a partially conductive state, the resulting leakage current spike can trip the dedicated SPD MCB — or, if no dedicated backup device is installed, the upstream main circuit breaker. This is the most common cause of a surge protector tripping breaker in panels without a properly coordinated SCPD.

Short-Circuit Failure: The Dangerous Case

If a surge event exceeds the SPD's maximum discharge current (Imax), or if cumulative degradation collapses the MOV to a low-impedance state before the thermal disconnector can operate, the SPD can fail in short-circuit mode. In this condition the device draws sustained mains follow current, generating significant local heating, arc energy, and pressure before the upstream overcurrent protective device clears the fault. This is the scenario IEC 61643-11's short-circuit withstand tests are specifically designed to characterise and control.

Short-circuit SPD failure produces visible evidence: discolouration, deformation, soot deposits on the housing or adjacent wiring, and the characteristic smell of burnt epoxy or ceramic. If any of these signs are present after a surge protector tripping breaker event, treat it as a high-energy failure and inspect the full enclosure and wiring before restoring power.

What Is Not the Cause

A healthy surge protector conducting a surge within its rated parameters does not trip the upstream breaker. The surge current duration (microseconds) is far too brief to trigger the thermal-magnetic trip mechanism of a standard MCB.

If a breaker trips every time a surge occurs — with no SPD fault indication on the status indicator — the root cause is almost always an undersized or incorrectly coordinated backup device, not the SPD itself. Refer to our circuit breaker vs surge protector coordination guide for correct SCPD sizing. For the governing installation standard, see IEC 60364-5-53 on the IEC website.

On-Site Diagnostic Checklist: Surge Protector Tripping Breaker

• Identify which device tripped. Was it the dedicated SPD backup MCB/fuse, or the main panel breaker? This determines whether the fault is in the SPD or in the protection coordination design.
• Inspect the SPD status indicator or status window before touching anything. A red mechanical flag or absent LED on any pole means that module is at end-of-life and must be replaced — resetting the MCB without replacing the SPD module leaves equipment unprotected.
• Check for physical damage. Inspect the SPD housing, wiring insulation, and adjacent DIN rail for discolouration, soot, deformation, or melted material. Any of these signs indicate a high-energy fault requiring full enclosure inspection.
• Verify recent surge events. Check power quality logs, BMS/SCADA records, or lightning counter readings. A confirmed nearby lightning strike or major grid switching event near the SPD's rated capacity is sufficient cause for proactive module replacement even if the status window still shows green.
• Confirm Uc is correctly sized. The SPD's maximum continuous operating voltage (Uc) must be at least 1.1× the system nominal voltage (e.g. 275 V AC for a 230 V system). An undersized Uc causes continuous MOV conduction at normal mains voltage, producing the same symptoms as end-of-life degradation. For the full Uc selection logic alongside Up, In, and Imax, see our SPD parameter selection guide.
• Check the backup device rating against the manufacturer's table. IEC 61643-11 requires manufacturers to specify the maximum SCPD type and rating tested with the SPD. A backup MCB that is too large will not clear an SPD short-circuit fault; one that is too small will cause nuisance tripping on legitimate surges.

SPD Status Indicator and Status Window Meaning

IEC 61643-11 requires voltage-limiting SPDs to incorporate a visual status indicator coupled to the internal thermal disconnector. When the disconnector operates, the indicator must change state so that end-of-life can be identified without dismantling the device.

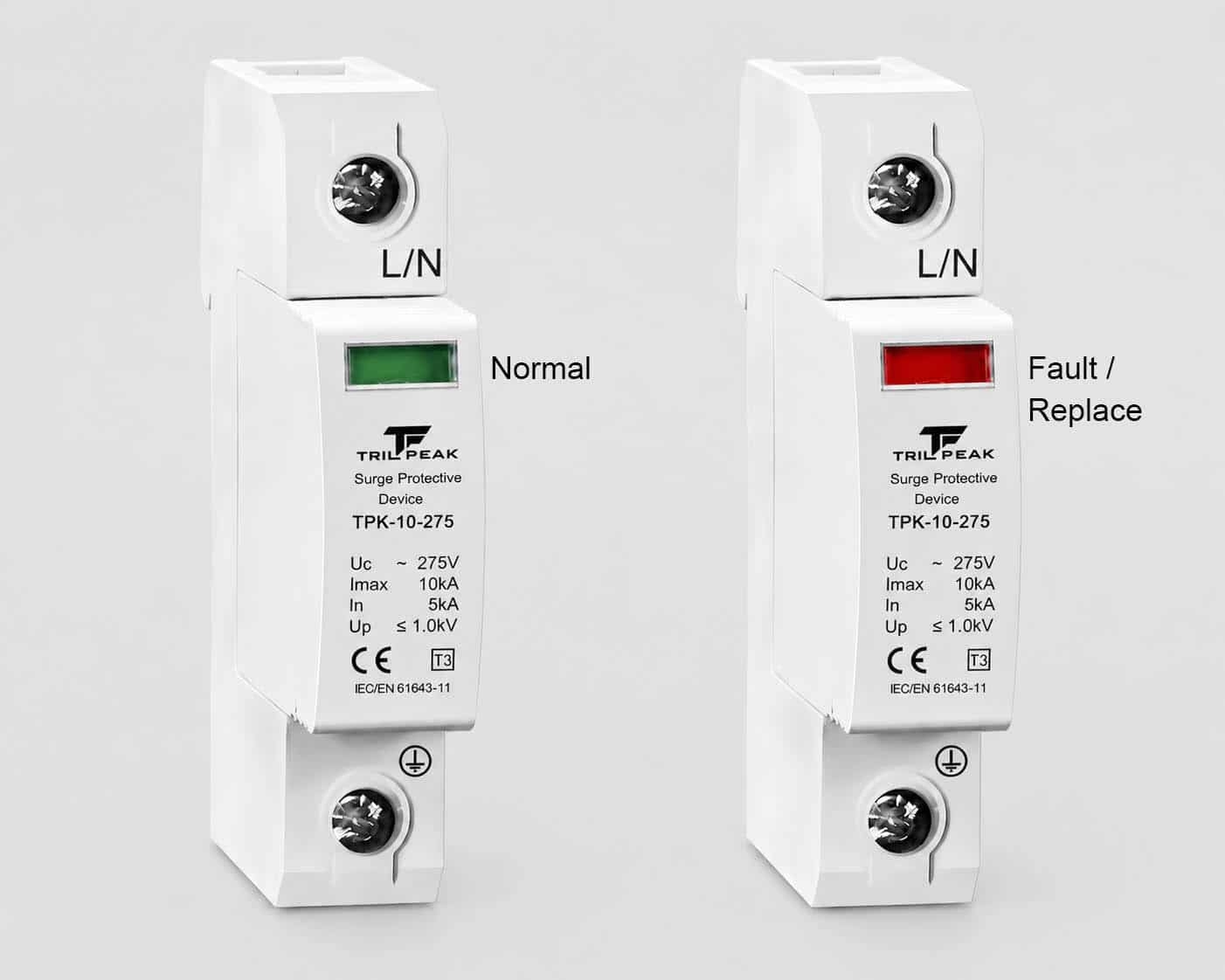

Industrial SPDs implement this requirement in two forms. The mechanical status window (colour flag or sliding indicator) physically changes colour — typically from green to red — when the thermal disconnector activates. It requires no power supply and gives a reliable reading even when the panel is de-energised. The LED status indicator uses a powered LED to show protection status — green when protection is present, extinguished or red when protection is lost. Because it requires an auxiliary supply, absence of light can mean either "panel off" or "SPD failed" — making context important when reading LED-based devices.

In North American documentation, the red status window is often called the trip light surge protector indicator, referring to the same end-of-life signal. When you see the trip light surge protector status window turn red, the only correct response is to replace the SPD module — not to reset the upstream MCB.

The critical point: a red status window — or an activated trip light surge protector indicator — means the protection path is open. The line remains energised and loads operate normally, but the next surge will reach equipment with no clamping whatsoever.

A surge protector light flickering or surge protector blinking is a separate warning: it signals the SPD is repeatedly activating under abnormal supply conditions, not necessarily that it has reached end-of-life yet. Investigate supply voltage quality and verify that Uc is correctly sized for the installation. If the surge protector flickering continues or the status window transitions to red, replace the module immediately.

Engineers frequently see a red status indicator, confirm loads are running, and delay replacement. This is incorrect practice under IEC 60364-5-53, Clause 534.4.6, which states that failed SPDs required for safety or availability should be replaced without undue delay.

Multi-Pole SPDs: Read Each Pole Individually

In three-phase or multi-pole modular SPDs, each pole or protection mode (L1-PE, L2-PE, L3-PE, N-PE) has its own status window or status indicator and its own internal disconnector. Losing one pole — for example the N-PE protection module — leaves that mode unprotected even if all other poles remain green.

The status indicator must be assessed pole-by-pole, not as a single device status. A device showing three green windows and one red window is at partial end-of-life. For modular SPDs, replace only the failed module — the remaining healthy modules continue protecting their respective modes.

Remote Signalling Contacts: Status Monitoring Without Visual Access

Industrial-grade SPDs include auxiliary changeover contacts (typically SPDT Form C) that change state when the internal disconnector operates. These contacts integrate SPD status indicator information into BMS, SCADA, or PLC systems — generating automated alarms when protection is lost, without requiring anyone to physically inspect the SPD.

For installations where SPDs are mounted in remote field panels or enclosures that are not regularly visited, remote signalling contacts are the primary — and often only — reliable method of detecting a failed SPD. An SPD with a red status window in a remote panel that is visited only quarterly can leave an installation unprotected for months without remote monitoring in place. See our IEC 61643-11 SPD standards guide for the full technical requirements for status indication and remote monitoring.

Surge Protector Failure Modes

Understanding the surge protector failure modes relevant to your installation determines both your maintenance schedule and your replacement strategy. IEC 61643-11 mandates defined and safe failure behaviour for all SPDs — including thermal stability tests, temporary overvoltage (TOV) tests, and short-circuit tests — precisely because uncontrolled surge protector failure modes can create fire and arc risks in the panel.

MOV Degradation and Thermal Runaway

Metal oxide varistors are inherently sacrificial. Each surge event slightly modifies the varistor's non-linear voltage-current characteristic: repeated surges below the nominal discharge current gradually lower the varistor voltage and increase leakage current at normal mains voltage. This is energy accumulation — the primary surge protector failure mode in installations subject to regular switching transients, indirect lightning, or sustained elevated mains voltage.

As leakage current increases, self-heating raises the MOV temperature. Higher temperature further reduces varistor resistance, increasing leakage further — a positive feedback loop that can lead to thermal runaway if the internal disconnector does not operate in time.

The thermal disconnector is the designed intervention point: it opens before the device reaches unsafe temperatures, transitioning the SPD to a safe open-circuit state and changing the status window to red. This is one of the most critical surge protector failure modes to understand — and why IEC 61643-11's thermal stability and TOV test requirements verify that the disconnector operates reliably under real degradation conditions.

Open-Circuit vs Short-Circuit Failure: Which Is Safer?

The two terminal surge protector failure modes have very different consequences for installation safety:

Open-circuit failure (the result of correct thermal disconnector operation) removes the protection path from circuit. The line remains energised, loads continue to operate, and there is no sustained fault current. Equipment is unprotected but supply continuity is maintained. This is the preferred failure mode under IEC 61643-11 because it eliminates fire and arc risk — provided the failed status indicator is detected and the module is replaced promptly.

Short-circuit failure occurs when the MOV collapses to a low-impedance state and draws sustained mains follow current before the thermal disconnector can operate. This is one of the more dangerous surge protector failure modes — it produces high local heating, pressure, and potential arc energy that must be cleared by the upstream SCPD.

While this forces the SPD out of circuit quickly, the energy released before interruption can damage the enclosure, adjacent wiring, and the backup device itself if coordination is poor. IEC 61643-11 short-circuit tests verify that SPDs fail safely — that the backup device rating specified by the manufacturer will clear the fault without catastrophic panel damage.

GDT and Hybrid SPD Failure Modes

Gas Discharge Tube (GDT) based Type 1 SPDs — used at building service entries — have different surge protector failure modes from MOV-based Type 2 devices. GDTs do not conduct at normal mains voltage and do not exhibit the same progressive degradation as MOVs.

Their failure modes include contact erosion over many operations, increased sparkover voltage (reducing protection effectiveness), and failure to ignite on a surge event. GDTs can also generate sustained mains follow current after ignition if not properly coordinated with downstream MOV-based SPDs — a coordination issue rather than a device failure per se.

Hybrid SPDs combining MOV elements with triggered switching elements or spark gaps provide more defined failure behaviour. The switching element activates rapidly on surge detection, interrupting fault currents before the thermal disconnector needs to operate, and changing the status indicator clearly to signal end-of-life.

These designs reduce the risk of dangerous surge protector failure modes in installations where panel safety margins are tight. For a full comparison of SPD types and their protection characteristics, see our Type 1 vs Type 2 vs Type 3 SPD guide.

Signs of a Failed SPD That Still Passes Current

The most dangerous surge protector failure mode is one that is invisible during normal operation. Because most industrial SPDs are connected in parallel with the protected circuit — not in series — a failed open-circuit SPD has no effect on load current. Equipment continues to operate normally. The only evidence of failure is the status indicator or remote signalling contact. Specific signs to look for:

• Red status window or absent LED on one or more poles while the circuit remains live — the most reliable indicator of open-circuit end-of-life failure
• Remote contact alarm active in BMS/SCADA with no corresponding MCB trip — classic signature of open-circuit failure with no load impact
• Pluggable SPD module removed and not replaced — common in installations where a module was swapped out after a fault and the replacement was never ordered
• Surge events recorded at or above In in the SPD's operating history, with no subsequent module replacement — real-world accumulated energy can exceed IEC 61643-11 operating duty test profiles even if the status window still reads green

How to Tell If a Surge Protector Is Bad: 5-Step Field Inspection

Knowing how to tell if a surge protector is bad requires a structured inspection procedure, not just a glance at the status indicator. The 5 steps below align with IEC 60364-6 verification requirements and IEC 60364-5-53, Clause 534.4 inspection guidance for industrial SPD maintenance. Use this checklist any time a surge protector tripping breaker event occurs, or as part of scheduled annual inspection.

• Verify certification and ratings match the installation. Confirm the SPD is certified to IEC 61643-11 for the correct Type (1, 2, or 3) and that Uc, In, Imax, and Isccr (short-circuit rating) are appropriate for the system voltage and prospective fault current at the installation point.
• Inspect the housing for physical damage. Check for cracks, deformation, soot deposits, discolouration, or signs of venting. Inspect wiring insulation near the SPD terminals for heat damage. Any of these signs indicates a high-energy fault event requiring full enclosure inspection before recommissioning.
• Read the status window or status indicator for every pole. Record green, red, or absent for each protection mode. Any red or absent reading means that pole's module is at end-of-life. Do not assess the SPD as healthy based on partial green status. For modular designs, note which specific module needs replacement.
• Test the remote signalling contact if fitted. Confirm the contact changes state when a module is removed or the built-in test function is activated, and that the BMS/SCADA system registers the alarm correctly. A remote contact that does not signal correctly defeats the monitoring system entirely.
• Verify the backup device rating. Confirm the dedicated SPD MCB or fuse is present and correctly rated per the manufacturer's coordination table and IEC 60364-5-53, Clause 534.4.5. A missing or incorrectly rated backup device is a code violation regardless of SPD condition.
• Measure PE lead length. The connection from the SPD PE terminal to the local protective earth bar should be under 50 cm. Every additional metre of PE lead adds inductive voltage during a surge, increasing the effective let-through voltage at the protected equipment even when the SPD is functioning correctly.
• Review surge event history. If the installation has experienced confirmed lightning events or major grid switching events at or near the SPD's rated capacity, plan proactive module replacement — even if all status windows remain green. IEC 61643-11 operating duty tests are statistical; real-world cumulative energy may exceed the tested profile.
• Document results and schedule the next inspection. Maintain a register of SPD model, location, installation date, and module replacement history as part of the IEC 60364-6 verification file. Without documented records, how to tell if a surge protector is bad becomes a guessing exercise rather than an evidence-based assessment.

When to Replace the Module vs Reset the MCB

After a surge protector tripping breaker event or a fault status indicator activation, the wrong response is to reset the upstream MCB and return the installation to service without addressing the SPD condition.

It is important to be clear: the SPD module itself cannot be reset. Once the thermal disconnector in a MOV-based SPD has operated, the protection path is permanently open. The only remedy is to replace the module. For modular designs — where each protection mode is a separate plug-in cartridge — the failed module can be swapped out in seconds without interrupting supply to the rest of the panel. The upstream MCB can then be reset once the new module is in place.

How to Reset the MCB After a Surge Protector Fault — and When Not To

When a dedicated SPD backup MCB has tripped, the MCB itself can be reset after the root cause is resolved. However, the correct sequence is critical: always replace the SPD module first, then reset the MCB — never the other way around.

When MCB reset is appropriate: The status window shows green on all poles, confirming the SPD protection path is intact. The MCB tripped due to an external overcurrent event unrelated to the SPD. Resolve the overcurrent cause, then reset the MCB. Protection is intact.

When MCB reset is wrong: The status window shows red on any pole. Resetting the MCB restores power to the circuit but does nothing for surge protection — the MOV path remains permanently open until the module is replaced. Operating with a red status window after resetting the MCB is operating without protection.

Frequently Asked Questions

Why does my surge protector keep tripping the breaker even after replacement?

If a surge protector tripping breaker keeps happening after the SPD module has been replaced, the root cause is almost certainly a coordination design problem rather than a faulty SPD.

Common causes: the backup MCB is too small for the surge currents in the installation, causing nuisance tripping; the SPD Uc is undersized relative to the actual system voltage (including tolerances and harmonics), causing continuous leakage at normal operating voltage; or there is no dedicated SPD backup device and the SPD fault current is being cleared by the main panel breaker instead.

Review the backup device rating against the SPD manufacturer's coordination table per IEC 60364-5-53, Clause 534.4.5. If the main breaker is tripping, install a dedicated SPD branch MCB or fuse between the main busbar and the SPD terminals.

What does a red status window or red indicator mean on a surge protector?

A red status window (mechanical flag) or red status indicator (LED) means the internal thermal disconnector has operated and the MOV protection path is open. The SPD module for that protection mode has reached end-of-life.

The line remains energised and loads continue to operate normally — but the device no longer provides any surge protection. A red status window is not a warning to monitor; it is an instruction to replace the SPD module immediately. For modular designs, only the failed module needs to be swapped — the rest of the device remains in service.

Per IEC 60364-5-53, Clause 534.4.6, SPDs required for safety or availability should be replaced without undue delay once protection is lost. Operating with a red indicator leaves your equipment fully exposed to the next surge protector failure mode.

Can a surge protector trip a breaker without being faulty?

It is extremely rare for a healthy, correctly coordinated surge protector to trip the upstream MCB. Normal surge clamping lasts microseconds — far too brief to trigger a thermal-magnetic circuit breaker.

A healthy SPD can cause a surge protector tripping breaker event in two specific legitimate scenarios: the surge event was severe enough to trigger the SPD's internal disconnector (an end-of-life event, correctly handled), or the backup MCB is undersized and trips on the inrush of the SPD's first surge response.

In both cases the solution is the same: check the status window on every pole, replace the module if any shows red, and verify the backup MCB rating matches the manufacturer's coordination specification.

How do I know when a surge protector has failed silently?

Silent failure — a surge protector failure mode resulting in open-circuit end-of-life with no MCB trip and no visible load impact — is detected through the status window and remote signalling contacts.

Check the status window on every pole: a red or absent reading on any mode confirms silent failure for that path. If the SPD has remote signalling contacts wired to a BMS or SCADA system, a contact state change will generate an alarm even when no MCB has tripped.

For installations without remote monitoring, knowing how to tell if a surge protector is bad requires scheduled visual inspection — at minimum annually, and after any confirmed major surge event. An undetected open-circuit surge protector failure mode can leave an installation unprotected for months before the next surge reveals the problem.

Does resetting the MCB after a surge protector fault restore protection?

No. Resetting the MCB after a surge protector tripping breaker event restores power to the circuit — it does not restore surge protection.

If the status window shows red after the MCB trips, the internal thermal disconnector has permanently opened the protection path. The SPD module must be replaced before surge protection is restored. Resetting the MCB with a red-status-window SPD module in place means all downstream equipment is operating without protection.

The only exception is an MCB trip caused by an external fault unrelated to the SPD — in which case the status indicator will remain green after the MCB reset, confirming protection is intact. Always check the status window on every pole before and after resetting any MCB in an SPD-protected circuit.

Why is my surge protector beeping?

A surge protector beeping is an audible end-of-life or fault alarm. It has the same meaning as a red status indicator — protection is lost for one or more modes and the SPD module must be replaced.

Do not silence the alarm without first replacing the failed module. Some devices allow the audible alarm to be muted, but muting the surge protector beeping does not restore protection — it only removes the audible warning while the SPD remains at end-of-life.

If the surge protector beeping occurs intermittently, review the manufacturer's alarm sequence documentation — continuous beeping typically indicates protection lost; intermittent beeping may indicate a wiring error or an overvoltage event in progress rather than end-of-life.

Can I reset a surge protector module after it trips?

No. A MOV-based SPD module cannot be reset. Once the internal thermal disconnector has operated, the MOV protection path is permanently open. The module must be replaced with a new one of the correct rating — there is no reset button or procedure that restores a tripped SPD module to service.

What can be reset is the upstream MCB (the dedicated SPD backup circuit breaker) — sometimes called the surge protector reset button on consumer-grade devices, but on industrial installations it is a standard MCB that is reset by hand after the fault is cleared. The correct sequence for how to reset a surge protector installation is always: replace the failed SPD module first → then reset the MCB. Resetting the MCB before replacing the module restores power without restoring protection.

For modular SPD designs, replacing a failed module takes seconds — the plug-in cartridge is removed and a new one inserted, with no tools required and no need to de-energise the rest of the panel. This is the primary advantage of modular SPD architecture for industrial maintenance.

Conclusion: Surge Protector Tripping Breaker — 5-Step Summary

The five most important principles for diagnosing a surge protector tripping breaker, a fault status window, or suspected surge protector failure modes in industrial installations:

• Step 1 — Identify which device tripped. A dedicated SPD backup MCB tripping is correct behaviour. The main panel breaker tripping means a coordination design error — not just a faulty SPD module.
• Step 2 — Read the status window before touching the MCB. A red status window or absent status indicator means end-of-life. Replace the SPD module first. Resetting the MCB without replacing the module leaves equipment unprotected.
• Step 3 — Inspect for physical damage. Soot, discolouration, or deformation after a surge protector tripping breaker event indicates high-energy short-circuit failure — inspect the full enclosure before restoring power.
• Step 4 — Understand silent failure. A red status window with loads running normally is a silent fault, not a resolved issue. The SPD module is open-circuit and equipment is completely unprotected — this is how to tell if a surge protector is bad when nothing else appears wrong.
• Step 5 — Fix coordination errors permanently. If the main panel breaker trips repeatedly, install a correctly rated dedicated SPD backup MCB per IEC 60364-5-53. The way to truly fix surge protector tripping problems is to address the coordination design — replacing the SPD module alone does not solve a coordination fault.

For installation guidance, see our surge protector installation guide. For industrial SPD product specifications, see the TrilPeak industrial surge protector range and our IEC 61643-11 compliance guide.
