RS485 Surge Protector: How to Select, Wire, and Install One in a Modbus Network
Quick Answer: What Is an RS485 Surge Protector?
An RS485 surge protector is a signal-line SPD wired in series between the RS485 field cable and the protected device. It clamps transient overvoltages — caused by lightning, switching events, or ground potential differences — to a safe level before they reach the RS485 transceiver. During normal Modbus or RS485 communication it is electrically transparent. During a surge it responds in under 10 ns, shunting excess energy to protective earth through a combination of GDT, series resistor, and TVS components.
TrilPeak TPKXJ series RS485 surge protectors — 2-wire, 4-wire, and DIN rail configurations, CE certified, IEC 61643-21
If your RS485 ports keep failing after storms, or your Modbus devices randomly drop off the bus when heavy equipment starts nearby, the cause is almost always the same: the power supply is protected, but the RS485 data line is not. Most projects specify power-side SPDs and leave the signal lines completely exposed — until the RS485 transceiver chip burns out, the PLC communication card fails, or an RTU at a remote site goes offline and someone has to drive out to replace it. An RS485 surge protector on the data line costs a fraction of a replacement communication card and takes minutes to install.
This guide covers how an RS485 surge protector works, where to install it in a Modbus network, how to wire it correctly — including grounding and cable shielding — and how to select the right model for your voltage and application.
Why RS485 Lines Need Surge Protection
RS485 uses differential signaling, which gives it good immunity to common-mode noise from motors, welders, and VFDs. But differential noise immunity and RS485 surge protection are two completely different things. A lightning-induced transient on a long outdoor cable carries energy roughly 100 times greater than a typical ESD event — enough to destroy the RS485 transceiver chip even if the power supply is fully protected. Every industrial Modbus RS485 network that runs cables beyond a single panel needs a dedicated RS485 surge protector on the signal lines.
There are three main paths through which surges damage RS485 equipment.
Lightning-induced surges on cable runs. RS485 cables frequently run between buildings, across open yards, or alongside high-voltage equipment. A lightning strike anywhere near these runs induces a transient voltage through electromagnetic coupling. On a 200-metre outdoor cable, this induced voltage can reach several kilovolts — far above the ±7 V to +12 V common-mode tolerance of a standard RS485 transceiver. RS485 lightning protection is not optional on any inter-building or outdoor cable run.
Ground potential rise (GPR). When a lightning strike or fault raises the earth potential at a remote panel relative to the control room, the difference appears as a common-mode voltage across the RS485 cable reference and earth. If this potential difference exceeds the transceiver's absolute maximum ratings, the chip fails — even with no apparent surge on the power supply.
Switching transients from heavy loads. Large motors, contactors, and VFDs generate fast transients that couple into adjacent RS485 wiring in the same cable tray or conduit. The result is not always immediate device failure — more often it is intermittent communication errors, bit errors, or devices randomly dropping off the Modbus bus. These faults are difficult to diagnose and frequently misattributed to software or configuration problems before the actual cause — missing Modbus RS485 surge protection on the data line — is identified.
Common misdiagnosis: Intermittent Modbus communication failures, random device drop-outs, or corrupted data frames after storms or when heavy equipment starts nearby are frequently caused by surges on unprotected RS485 lines — not by software bugs or wiring faults.
In practice, RS485 surge damage shows up in three recognisable patterns: a burned or shorted transceiver chip on the PCB, the same port at the cable entry point failing repeatedly while other ports on the same device stay healthy, or ESD protection diodes on the A/B pins going short-circuit to the supply rail. If you are replacing the same RS485 module or communication card every few months, a missing RS485 surge protector on the data line is the most likely cause.
How an RS485 Surge Protector Works: 3-Stage Protection
Most industrial RS485 surge protectors use a 3-stage protection architecture. Each stage handles a different portion of the transient event. Understanding this architecture helps you verify that any signal line surge protector you specify meets the actual protection requirements of your installation.
Stage 1 — Gas Discharge Tube (GDT): Primary Protection
The GDT handles the initial high-energy portion of the surge. When the voltage across the RS485 line exceeds the GDT spark-over voltage, it conducts heavily and diverts the bulk of the surge energy to protective earth. GDTs are capable of handling very high surge currents — up to 10 kA (8/20 µs) in the TrilPeak TPKXJ series.
Stage 2 — Series Resistor: Current Limiting
A pulse-proof series resistor sits between the GDT and the TVS stage. It limits the current flowing through to the TVS during the GDT conduction phase, preventing the TVS from being overwhelmed. It also limits the current that can reach the RS485 transceiver if the protection stages are stressed beyond their ratings.
Stage 3 — TVS Diode: Precision Clamping
The TVS (Transient Voltage Suppressor) diode clamps the residual voltage after the GDT and resistor stages have absorbed most of the energy. It responds in under 1 ns and holds the line voltage within the RS485 transceiver's safe operating range. The residual protection level (Up) for the TrilPeak TPKXJ-24V is ≤25 V — well within the absolute maximum ratings of standard RS485 ICs.
Under normal RS485 or Modbus communication, the protection circuit is passive. Its series resistance (15 Ω) and capacitance are low enough that they do not distort signals at normal Modbus baud rates. Data rates up to 10 Mbps are supported — the SPD is transparent to the communication protocol.
Where to Install an RS485 Surge Protector in Your Modbus Network
Correct placement is as important as device selection. An RS485 surge protector installed in the wrong position — or with a long earth lead — provides significantly reduced protection even if it is correctly rated. The rule for Modbus RS485 surge protector placement is straightforward: protect every point where the cable crosses a zone boundary or enters a building.
Install at Every Exposed Cable Entry Point
For a Modbus RS485 network with a master (PLC or RTU) at one end and multiple field devices at the other, install an RS485 surge protector wherever the cable transitions from a protected indoor environment to an exposed run:
- At the master/PLC panel: where the field cable exits the control room
- At each remote field panel or junction box: where the cable arrives from an outdoor or inter-building run
- At each exposed field device: sensors, meters, and RTUs in outdoor or lightning-exposed locations
Installing at only one end leaves the other end exposed. A surge travelling along a 300-metre cable run arrives at both ends of the bus simultaneously. One SPD cannot protect both the master and the last field device.
Mount as Close as Possible to the Protected Device
The RS485 surge protector must be installed directly in front of the RS485 port it protects, with the shortest possible lead between the SPD output and the device terminals. Every centimetre of conductor between the SPD output and the device adds inductance — and during a surge, that inductance adds voltage. A 10-centimetre lead between SPD and device can add tens of volts to the effective let-through voltage at the transceiver.
Critical installation rule: The earth connection from the RS485 surge protector PE terminal to the local protective earth bar must be as short as possible — ideally under 50 cm. A long earth lead dramatically increases the effective residual voltage reaching the protected device. This is the single most common installation mistake with RS485 SPDs.

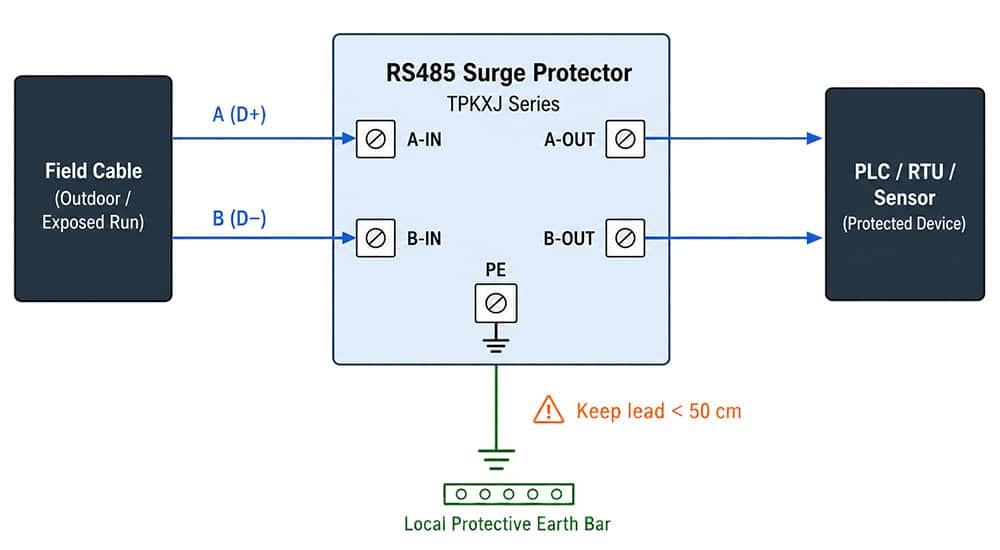

How to Wire an RS485 Surge Protector: Terminals, Grounding, and Cable Shield
An RS485 surge protector is wired in series on the signal path. The field cable connects to the IN terminals; the protected device connects to the OUT terminals; the PE terminal connects to local protective earth.
| Terminal | Connection | Notes |
|---|---|---|
| IN (1, 2) | Field cable — RS485 A and B lines from the outdoor or exposed run | Connect the incoming field cable here |
| OUT (1, 2) | RS485 A and B terminals on the protected device | Keep this lead as short as possible |
| PE / ⏚ | Local protective earth bar | Shortest possible connection — under 50 cm |
For 2-wire half-duplex RS485 (the standard Modbus RTU configuration), connect the A and B lines through the SPD. For 4-wire full-duplex RS422/RS485, use the TPKXJ-4 model, which protects both the TX pair and the RX pair independently.
The RS485 bus termination resistor (typically 120 Ω) and any fail-safe bias resistors stay on the device side — after the SPD output terminals. The SPD sits upstream of the termination, not between it and the line.
The TPKXJ series is passive and requires no external power. Once wired, it is operational immediately with no configuration required.
Grounding and Cable Shield Termination
Correct earthing is what makes an RS485 surge protector actually work. The SPD can only divert surge energy if it has a low-impedance path to ground — which means the PE terminal connection must be short, direct, and bonded to the local protective earth bar at the same panel. A long or high-impedance earth lead effectively adds inductance in series with the surge path, raising the residual voltage that reaches the transceiver even when the RS485 SPD is functioning correctly.
For cable shields: if the RS485 cable has a drain wire or foil shield, bond it to the SPD's earth terminal at the protected end. Follow your site's EMC grounding policy for the far end — single-point earthing is common for long runs to avoid introducing ground loop currents, but the key requirement is that the shield connects to the SPD earth terminal at the point of protection.
Most common RS485 SPD installation mistake: The PE lead from the SPD to the earth bar is too long — more than 50 cm. During a surge, every centimetre of this lead adds inductive voltage drop, which adds directly to the let-through voltage at the transceiver. Keep it as short as physically possible, and use a dedicated lug on the earth bar rather than daisy-chaining through other terminals.
How to Select the Right RS485 Surge Protector: Voltage, Current, and Mounting
Selecting an RS485 surge protector means matching three key parameters to your application: the nominal voltage (Un), the surge current rating, and the mounting format. The table below covers all parameters you need to specify a Modbus RS485 surge protector correctly.
| Parameter | What It Means | TPKXJ Series Values | How to Choose |
|---|---|---|---|
| Un (Nominal Voltage) | Normal operating voltage of your RS485 system | 6 / 12 / 24 / 48 Vdc | Match to your RS485 supply voltage |
| Uc (Max Continuous Voltage) | Maximum voltage the SPD withstands continuously without activating | 8 / 15 / 30 / 65 Vdc | Must exceed all normal line voltages including common-mode excursions |
| In (Nominal Discharge Current) | Surge current the SPD handles in standard conditions (8/20 µs waveform) | 5 kA | 5 kA suits most industrial applications |
| Imax (Max Discharge Current) | Maximum single-impulse surge current the SPD survives | 10 kA | Match to lightning exposure level of the site |
| Up (Protection Level) | Residual voltage at SPD terminals during a surge at In | ≤12 / ≤25 / ≤60 / ≤75 V | Must be below the absolute max rating of the RS485 transceiver |
| Response Time | How fast the SPD activates | <10 ns | 10 ns is sufficient for all lightning and switching transients |
For most Modbus RTU applications using 24 V RS485 systems, the TPKXJ-2 (24V) covers the majority of installations. For 12 V systems, select the TPKXJ-2 (12V). For 4-wire RS422 or full-duplex RS485, use the TPKXJ-4 in the matching voltage.
In-Line vs DIN Rail RS485 Surge Protector Mounting
The TPKXJ series comes in two mounting configurations. The in-line RS485 surge protector (TPKXJ-2 / TPKXJ-4) uses screw terminals and mounts directly on the cabinet backplate or near the device terminals. It can also be converted to DIN rail mounting by attaching an optional DIN rail adapter clip — giving the same in-line model full flexibility for both backplate and rail installations. The DIN rail RS485 surge protector (TPKXJ-x-DIN) is designed specifically for 35mm rail and clips directly into the panel alongside circuit breakers and other DIN rail components.
RS485 Surge Protector Applications: Where RS485 Lightning Protection Is Required
An RS485 surge protector is required wherever RS485 cables leave a protected indoor environment or run between separate structures with different earth potentials. The following applications consistently require RS485 lightning protection on signal lines:
- PLC and SCADA systems: Modbus RTU links between PLC panels and remote I/O, RTUs, field sensors, and instruments in outdoor or industrial environments. A Modbus RS485 surge protector at both the PLC panel and each remote cabinet is standard practice in any exposed installation.
- Building automation (BMS): BACnet MS/TP or Modbus RS485 between floors, between buildings, or to rooftop HVAC equipment and energy meters. Inter-building RS485 runs are among the highest-risk surge paths in any facility.
- Solar power monitoring: RS485 between inverters, combiner boxes, and data loggers in PV arrays — outdoors and directly exposed to lightning. Every inverter RS485 port in an outdoor array needs a dedicated RS485 surge protector.
- Water and wastewater: Remote pump stations, flow meters, and level sensors on long RS485 runs back to the control room — often crossing open ground between buildings.
- Energy metering and substation monitoring: RS485 from power quality meters and protection relays to SCADA systems, where ground potential differences between panels can be significant.
- Security and access control: RS485 buses connecting controllers and readers across buildings or campuses, where cable runs frequently cross zone boundaries without any signal line surge protection.
For related protection guidance, see our complete guide to PLC surge protection, our industrial Ethernet surge protector guide, and our technical overview of how surge protection devices work. The governing product standard for signal-line SPDs is IEC 61643-21, which defines test methods and performance classes for RS485 and data line surge protection devices. For installation classification and surge immunity levels, IEC 61000-4-5 defines the surge waveform standards your Modbus nodes are expected to withstand.
TrilPeak TPKXJ Series — RS485 Signal Line SPDs
CE certified, IEC 61643-21 / EN 61643-21. Available in 6 V, 12 V, 24 V, and 48 V; 2-wire and 4-wire configurations; in-line and DIN rail mounting. Operating temperature −40°C to +80°C. Passive operation — no external power required.
→ View the full TrilPeak RS485 and signal line SPD product range
Not Sure Which RS485 SPD You Need?
Tell us your RS485 voltage, cable length, and installation environment. Our engineers will confirm the right TPKXJ model and quantity for your project — free of charge.
Frequently Asked Questions
Power-side SPDs protect the supply voltage — they do nothing for the RS485 data lines. A surge induced on a long field cable by a nearby lightning strike travels directly along the RS485 conductors into the transceiver, completely bypassing the power supply and its protection. The data line is a separate entry point into your equipment. You need an RS485 surge protector wired in series on the A and B lines themselves, with its PE terminal bonded to local earth, to intercept surges on the signal path.
Match the SPD nominal voltage (Un) to your RS485 system supply voltage, not the logic voltage of the transceiver. Most RS485 transceivers run from 3.3 V or 5 V logic, but what matters for SPD selection is the maximum line voltage and common-mode range the bus operates at. The TPKXJ-12V (Uc = 15 Vdc) is correct for 5 V and 12 V RS485 systems. The TPKXJ-24V (Uc = 30 Vdc) is correct for 24 V industrial RS485 installations. The key rule: Uc must be above the highest voltage that will normally appear on the line — including common-mode excursions — so the SPD does not activate during normal operation.
With a correctly selected SPD, the impact on signal quality is minimal. The TPKXJ series adds 15 Ω of series resistance per line and supports data rates up to 10 Mbps. At standard Modbus RTU baud rates (9600 to 115200 bps), this introduces no measurable degradation. For very long cable runs at high baud rates, the added series resistance slightly reduces the available signal margin — factor it into your bus loading calculation alongside the termination resistance and transceiver drive strength. In most practical industrial RS485 installations, this is not a limiting factor.
RS485 SPDs degrade with each surge event they absorb. There is no visible indicator on the TPKXJ in-line series — the device does not show an end-of-life flag like some power SPDs do. In practice: if a major surge event occurs (lightning strike nearby, equipment damaged elsewhere on the same system), treat the RS485 SPDs in that installation as potentially degraded and replace them. If RS485 communication errors begin appearing on a previously stable bus with no other changes, a degraded SPD conducting partially at normal signal levels is one of the causes to investigate. For critical systems in high-lightning-exposure locations, scheduled SPD replacement every few years is a reasonable maintenance practice.
Conclusion: RS485 Surge Protector Selection and Installation Checklist
An RS485 surge protector is a low-cost, passive device that prevents expensive and time-consuming RS485 transceiver failures in industrial Modbus networks. The key points from this guide:
- Power-side SPDs do not protect RS485 data lines — a dedicated RS485 surge protector wired in series on the A and B lines is required.
- Install at both ends of any exposed cable run: at the master/PLC panel and at each remote field device. One SPD does not protect both ends.
- Select the SPD nominal voltage (Un) to match your RS485 system supply voltage — 12 V, 24 V, or 48 V. Uc must exceed the highest normal line voltage including common-mode excursions.
- For standard Modbus RTU, use a 2-wire RS485 surge protector. For RS422 or full-duplex RS485, use the 4-wire model.
- Keep the PE earth lead under 50 cm. This is the single most common installation mistake and the one that most reduces effective RS485 lightning protection.
- Choose in-line or DIN rail RS485 surge protector format based on your panel layout. Both provide identical electrical protection.
- Replace SPDs after any major surge event on the protected installation — degraded SPDs may not protect adequately against the next event.
The TrilPeak TPKXJ series meets these requirements in a compact, passive package with no external power, CE certification to IEC 61643-21, and operating temperatures from −40°C to +80°C. For help selecting the right model or quantity for your project, contact our engineering team.
