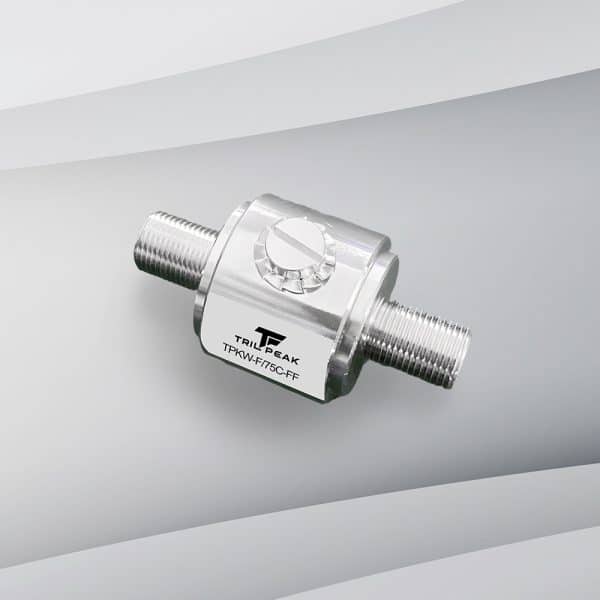

Key Features
• Interface: F (Female/Female)
• Frequency range: 0–3 GHz
• Maximum continuous operating voltage (Uc): 75 V
• Nominal discharge current (In): 10 kA (8/20 μs)
• Maximum discharge current (Imax): 20 kA (8/20 μs)
• Voltage protection level (Up): ≤ 600 V
• Max current: 10 A
• Maximum peak power: 200 W
• Impedance: 75 Ω
• Insertion loss: 0.2 dB
• VSWR: 1.2:1
• Response time: < 100 ns
• Degree of protection: IP67
• Enclosure Material: Metal
• Temperature range: –40 °C to +80 °C
• Altitude: ≤ 4000 m
• Field replaceable GDT: Yes
• SPD classification: C2, C3
• Product standards: IEC 61643-21

Standards and Compliance
• Complies with IEC 61643-21
• SPD classification: C2, C3
• RF and coaxial surge protection
• Tested with 8/20 μs waveform up to 20 kA
